(90.118.020) - REAR VIEW MIRROR, OUTSIDE

Запчасти Case CX750D RTC ME (90.118.020) - REAR VIEW MIRROR, OUTSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

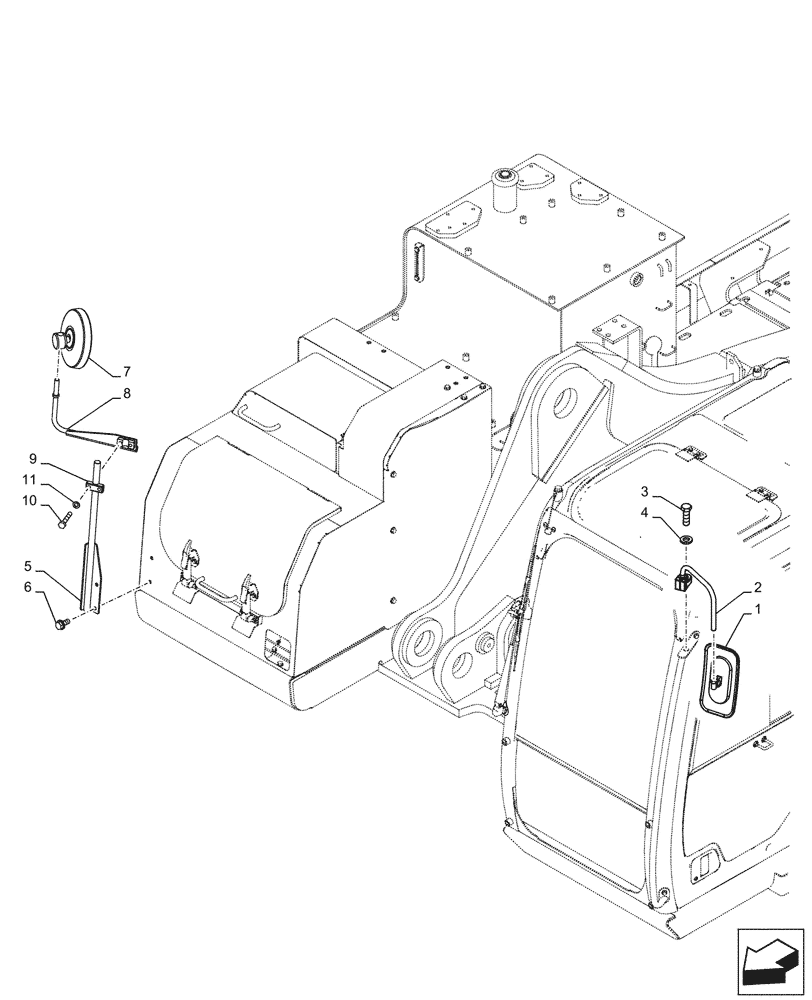

Схема запчастей Case CX750D RTC ME - (90.118.020) - REAR VIEW MIRROR, OUTSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
4
3
8
11
2
1
10
7
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHP13190

REAR VIEW MIRROR,166mm x 330mm

1шт.

2

KHP11350

SUPPORT

1шт.

3

KHP15020

BOLT,Hex

1шт.

4

157528A1

WASHER

1шт.

5

KWP11530

STAY

1шт.

6

166352A1

BOLT

2шт.

7

KHP15130

REAR VIEW MIRROR

1шт.

8

KWP11820

STAY

1шт.

9

169338A1

CLAMP

1шт.

10

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

11

892-11010

LOCK WASHER,M10

2шт.
