(90.116.010) - GUARD, FRAME, LOWER

Запчасти Case CX750D RTC ME (90.116.010) - GUARD, FRAME, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

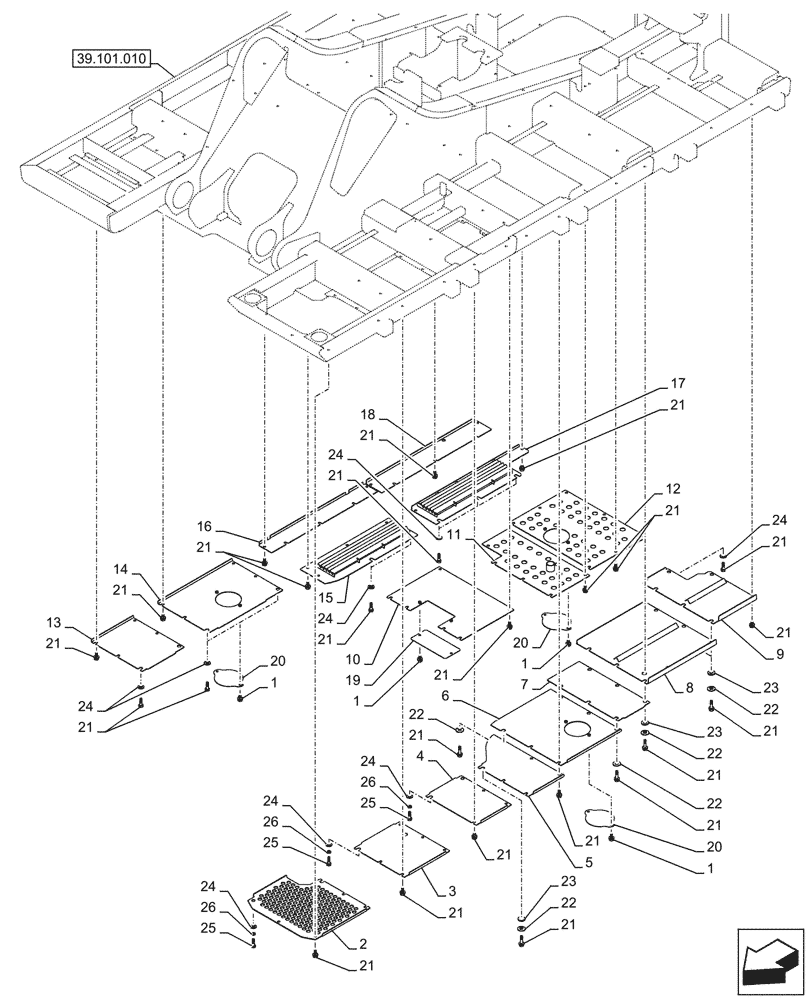

Схема запчастей Case CX750D RTC ME - (90.116.010) - GUARD, FRAME, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS
26
19
14
21
20
5
21
21
21
21
1
23
26
18
21
13
21
22
21
21
21
24
16
22
25
9
21
24
24
12
3
21
2
8
21
11
21
1
21
22
21
23
1
25
23
24
17
26
21
21
21
20
22
21
20
7
1
10
24
21
4
39.101.010
25
22
24
15
6
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

167893A1

BOLT

8шт.

2

KWB12180G4

COVER

1шт.

3

KWB11191G4

COVER

1шт.

4

KWB12190G4

COVER

1шт.

5

KWB12200G4

COVER

1шт.

6

KWB12210G4

COVER

1шт.

7

KWB11230G4

COVER

1шт.

8

KWB11240G4

COVER

1шт.

9

KWB11251G4

COVER

1шт.

10

KWB11260G4

COVER

1шт.

11

KWB12220G4

COVER

1шт.

12

KWB12230G4

COVER

1шт.

13

KWB12240G4

COVER

1шт.

14

KWB12250G4

COVER

1шт.

15

KWB12260G4

COVER

1шт.

16

KWB11320G4

COVER

1шт.

17

KWB12270G4

COVER

1шт.

18

KWB11340G4

COVER

1шт.

19

KWB11410G4

COVER

1шт.

20

KSB18190G4

COVER

3шт.

21

162278A1

BOLT

82шт.

22

KUB10480

SPACER

11шт.

23

KHB14160

WASHER

7шт.

24

KUB10470

SPACER

17шт.

25

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

26

150811A1

WASHER

6шт.
