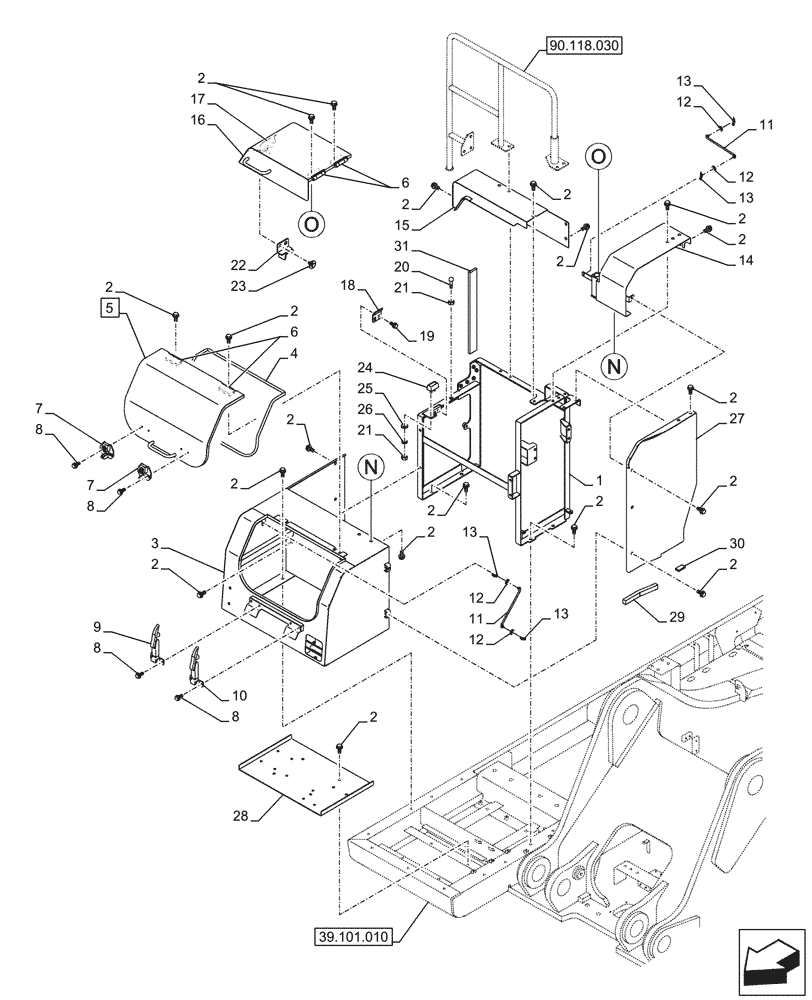

Запчасти Case CX750D RTC ME (90.105.080) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KWN14110

FRAME

1шт.

2

166352A1

BOLT

48шт.

3

KWN14190G4

COVER

1шт.

4

KWN12100

CUSHION

1шт.

5

KWN14140G4

COVER

ASSY, Incl 6 (Qty 2)

1шт.

6

KBB12540

HINGE

4шт.

7

150785A1

STOP LOCK

2шт.

8

166350A1

BOLT

8шт.

9

151356A1

LOCK ASSY

1шт.

10

151361A1

HANDLE

1шт.

11

KWN11720

STAY

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

13

153181A1

COTTER PIN

4шт.

14

KWN14130G4

COVER

1шт.

15

KWN14120G4

COVER

1шт.

16

KWN14150G4

COVER

ASSY, Incl 6 (Qty 2)

1шт.

17

158920A1

LOCK

1шт.

18

KWN12110

BRACKET

1шт.

19

166052A1

BOLT

2шт.

20

159091A1

STOP

1шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

22

KWN14540

BRACKET

1шт.

23

KHN24900

BOLT

2шт.

24

KRN2098

STOP

1шт.

25

150409A1

WASHER

2шт.

26

892-11010

LOCK WASHER,M10

2шт.

27

KWN14510G4

COVER

1шт.

28

KWN14560G4

COVER

1шт.

29

KWN12410

SEAL

1шт.

30

KHN2507

SEAL

1шт.

31

ADN22020

SEAL

1шт.
