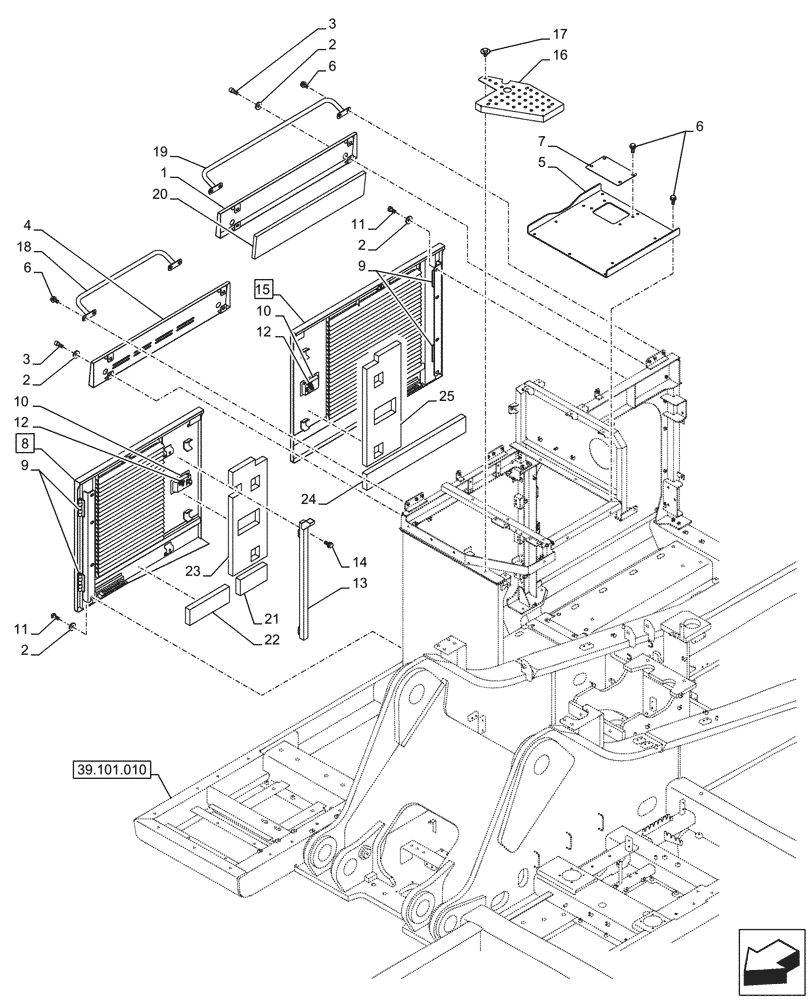

Запчасти Case CX750D RTC ME (90.105.060) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KWN11150Y2

COVER

1шт.

2

150900A1

WASHER

16шт.

3

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

8шт.

4

KWN14350Y2

COVER

1шт.

5

KWN14340

FRAME

1шт.

6

166352A1

BOLT

18шт.

7

KWN11710

COVER

1шт.

8

KWN13660Y2

ASSY, Incl 9 (Qty 2), 10 (Qty 1)

DOOR

1шт.

9

KHN35880

HINGE

4шт.

10

KHN24520

LOCK

2шт.

11

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

12

KHN24530

LOCK CYLINDER

2шт.

13

KWN11300Y2

FRAME

1шт.

14

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

15

KWN13670Y2

ASSY, Incl 9 (Qty 2), 10 (Qty 1)

DOOR

1шт.

16

KWN11610

COVER

1шт.

17

KHN12020

BOLT,Spcl

4шт.

18

KWN11560

GUARD

1шт.

19

KWN11570

GUARD

1шт.

20

KWN12280

INSULATION

1шт.

21

KWN12480

INSULATION

1шт.

22

KWN12490

INSULATION

1шт.

23

KWN12500

INSULATION

1шт.

24

KWN12460

INSULATION

1шт.

25

KWN12470

INSULATION

1шт.
