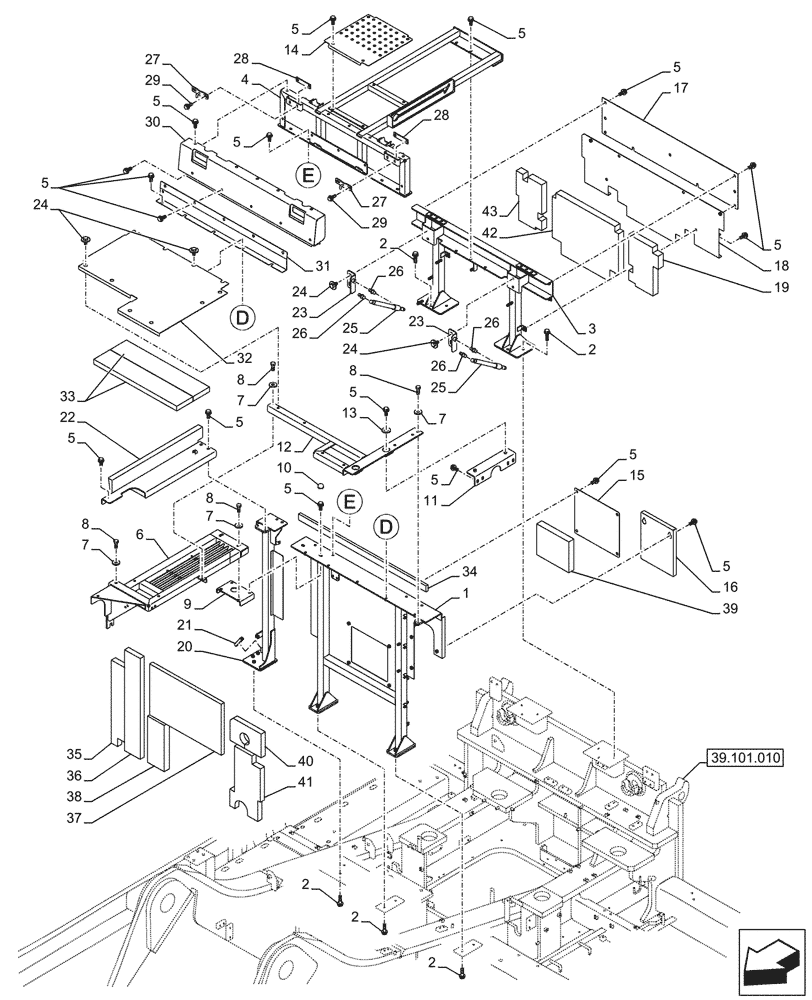

Запчасти Case CX750D RTC ME (90.105.040) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KWN13650

FRAME

1шт.

2

105R012Y045R

BOLT

13шт.

3

KWN14280

FRAME

1шт.

4

KWN14550

FRAME

1шт.

5

166352A1

BOLT

56шт.

6

KWN14010

FRAME

1шт.

7

150900A1

WASHER

6шт.

8

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

9

KWN14020

BRACKET

1шт.

10

159489A1

CAP

2шт.

11

KWN13830

BRACKET

1шт.

12

KWN13910

FRAME

1шт.

13

KWN11930

SPACER

2шт.

14

KWN11700

STEP

1шт.

15

KWN11760

COVER

1шт.

16

KWN14060

COVER

1шт.

17

KWN13780G4

COVER

1шт.

18

KWN13980

COVER

1шт.

19

KWN14000

INSULATION

1шт.

20

KWN13890

FRAME

1шт.

21

HEH0026

RUBBER SEAL

1шт.

22

KWN13900

FRAME

1шт.

23

KBN16280

BRACKET

2шт.

24

KHN12020

BOLT,Spcl

14шт.

25

KHN46490

DAMPER

2шт.

26

KHN24170

BALL

4шт.

27

KHN39220

CATCH

2шт.

28

KSN20070

PLATE

2шт.

29

167182A1

BOLT,Sems, M8 x 25mm

4шт.

30

KWN14080G4

COVER

1шт.

31

KWN13860

COVER

1шт.

32

KWN13930

COVER

1шт.

33

KWN14430

INSULATION

2шт.

34

KWN12380

SEAL

1шт.

35

KWN13810

SEAL

1шт.

36

KWN14480

SEAL

1шт.

37

KWN12290

INSULATION

1шт.

38

KWN12300

INSULATION

1шт.

39

KWN12310

INSULATION

1шт.

40

KWN14050

SEAL

1шт.

41

KWN14070

SEAL

1шт.

42

KWN12240

INSULATION

1шт.

43

KWN13990

INSULATION

1шт.
