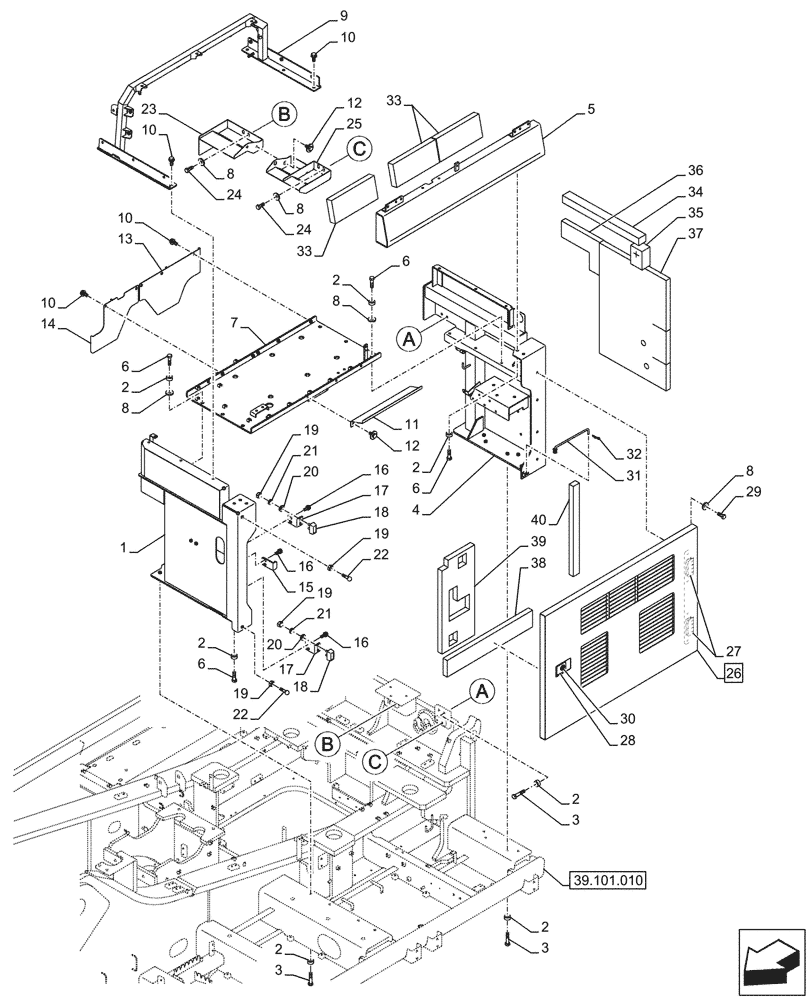

Запчасти Case CX750D RTC ME (90.105.030) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KWN13720Y2

FRAME

1шт.

2

KHN13750

SPACER

21шт.

3

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

10шт.

4

KWN14290Y2

FRAME

1шт.

5

KWN13880Y2

FRAME

1шт.

6

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

11шт.

7

KWN13850

FRAME

1шт.

8

150900A1

WASHER

14шт.

9

KWN14300

FRAME

1шт.

10

166352A1

BOLT

11шт.

11

KWN11960

COVER

1шт.

12

KHN12020

BOLT,Spcl

5шт.

13

KWN14040

COVER

1шт.

14

KWN13820

COVER

1шт.

15

KHN11940

SUPPORT

1шт.

16

166347A1

BOLT,Sems, M10 x 30mm

6шт.

17

KHN39050

BRACKET

2шт.

18

KRN2098

STOP

2шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

20

150409A1

WASHER

4шт.

21

892-11010

LOCK WASHER,M10

4шт.

22

159091A1

STOP

2шт.

23

KWN12580

COVER

1шт.

24

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

4шт.

25

KWN12590

COVER

1шт.

26

KWN13690Y2

ASSY, Incl 27, 28

DOOR

1шт.

27

KHN3651

HINGE

2шт.

28

KHN24520

LOCK

1шт.

29

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

30

KHN24530

LOCK CYLINDER

1шт.

31

KWN11770

STAY

1шт.

32

153181A1

COTTER PIN

1шт.

33

KRN2788

NOISE PROTECTION

3шт.

34

KWN12140

SEAL

1шт.

35

KWN12420

INSULATION

1шт.

36

KWN12160

INSULATION

1шт.

37

KWN14470

INSULATION

1шт.

38

KWN12510

INSULATION

1шт.

39

KWN12520

INSULATION

1шт.

40

KWN12530

INSULATION

1шт.
