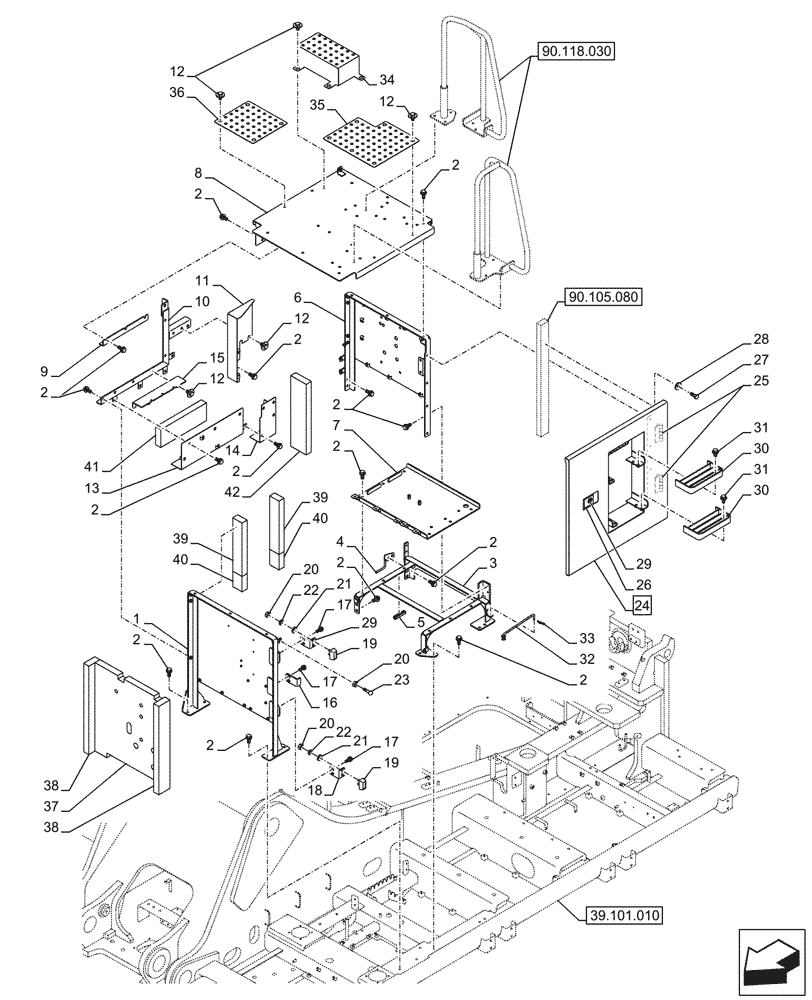

Запчасти Case CX750D RTC ME (90.105.020) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KWN14310

FRAME

1шт.

2

166352A1

BOLT

51шт.

3

KWN14170

FRAME

1шт.

4

KWN14180

BRACKET

1шт.

5

HEH0026

RUBBER SEAL

1шт.

6

KWN14270

FRAME

1шт.

7

KWN14360

FRAME

1шт.

8

KWN14090Y2

FRAME

1шт.

9

KWN14240

BRACKET

1шт.

10

KWN14200

FRAME

1шт.

11

KWN14230

COVER

1шт.

12

KHN12020

BOLT,Spcl

19шт.

13

KWN14220

COVER

1шт.

14

KWN14210

COVER

1шт.

15

KWN14320

BRACKET

1шт.

16

KHN11940

SUPPORT

1шт.

17

166347A1

BOLT,Sems, M10 x 30mm

6шт.

18

KHN39050

BRACKET

2шт.

19

KRN2098

STOP

2шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

5шт.

21

150409A1

WASHER

4шт.

22

892-11010

LOCK WASHER,M10

4шт.

23

159091A1

STOP

1шт.

24

KWN13680Y2

ASSY, Incl 25, 26

DOOR

1шт.

25

KHN35880

HINGE

2шт.

26

KHN24520

LOCK

1шт.

27

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

28

150900A1

WASHER

4шт.

29

KHN24530

LOCK CYLINDER

1шт.

30

KWN10600Y2

STEP

2шт.

31

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

8шт.

32

KWN11770

STAY

1шт.

33

153181A1

COTTER PIN

1шт.

34

KWN11650

COVER

1шт.

35

KWN11640

COVER

1шт.

36

KWN11630

COVER

1шт.

37

KWN14490

INSULATION

1шт.

38

KWN12360

SEAL

2шт.

39

KTN14660

INSULATION

2шт.

40

ADN20980

INSULATION

2шт.

41

KWN14420

INSULATION

1шт.

42

KWN12400

SEAL

1шт.
