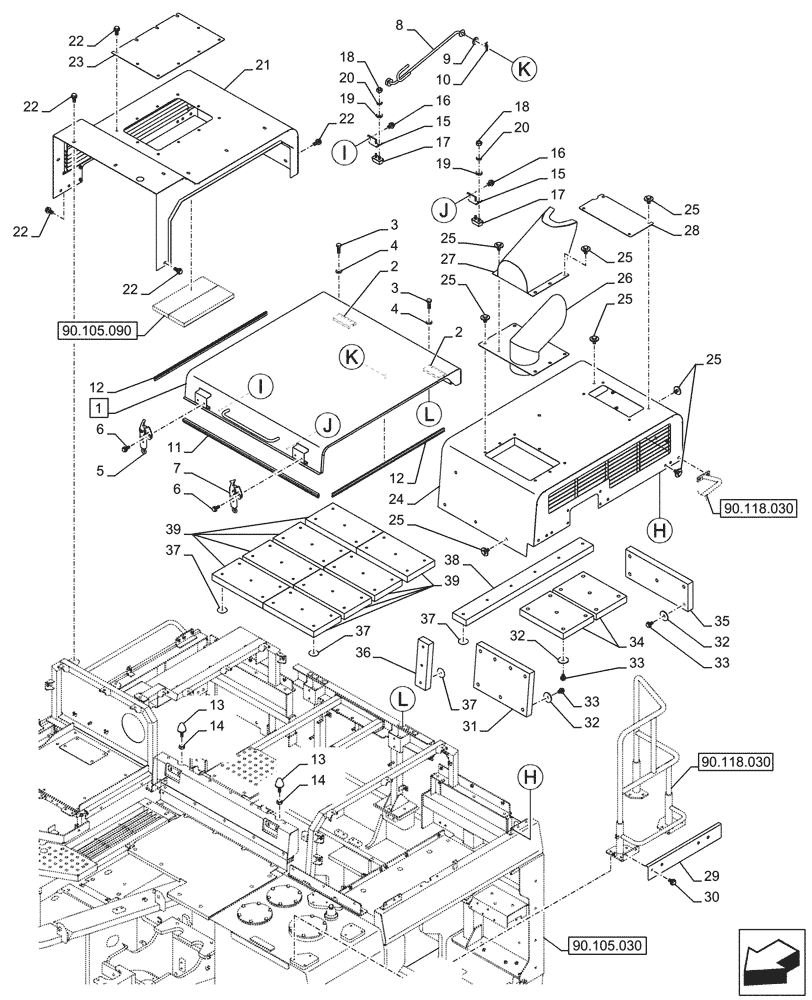

Запчасти Case CX750D RTC ME (90.100.010) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KWN13751G4

HOOD

ASSY, Incl 2

1шт.

2

152819A1

HINGE

2шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

4

150811A1

WASHER

6шт.

5

KHN39200

CATCH

1шт.

6

167182A1

BOLT,Sems, M8 x 25mm

4шт.

7

KHN39210

CATCH

1шт.

8

KHN43650

STAY

1шт.

9

166575A1

SHIM

1шт.

10

KHN2373

PIN, SPLIT (COTTER)

1шт.

11

KHN28770

FOAM INSULATION

1шт.

12

KAN3326

TRIM

2шт.

13

151108A1

STOP

2шт.

14

KBH0446

NUT

2шт.

15

KUN10260

SUPPORT

2шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

17

KRN2098

STOP

2шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

19

150409A1

WASHER

4шт.

20

892-11010

LOCK WASHER,M10

4шт.

21

KWN13740G4

HOOD

1шт.

22

166352A1

BOLT

25шт.

23

KWN11730G4

COVER

1шт.

24

KWN13760G4

HOOD

1шт.

25

KHN12020

BOLT,Spcl

28шт.

26

KWN13970

PIPE

1шт.

27

KWN13960

COVER

1шт.

28

KWN14330G4

COVER

1шт.

29

KWN11550

COVER

1шт.

30

KHN39331

BOLT

4шт.

31

KWN12190

INSULATION

1шт.

32

163356A1

WASHER

22шт.

33

166350A1

BOLT

22шт.

34

KWN14460

INSULATION

2шт.

35

KWN12170

INSULATION

1шт.

36

KWN14450

INSULATION

1шт.

37

KHN35020

WASHER

49шт.

38

KWN14440

INSULATION

1шт.

39

KWN14390

INSULATION

8шт.
