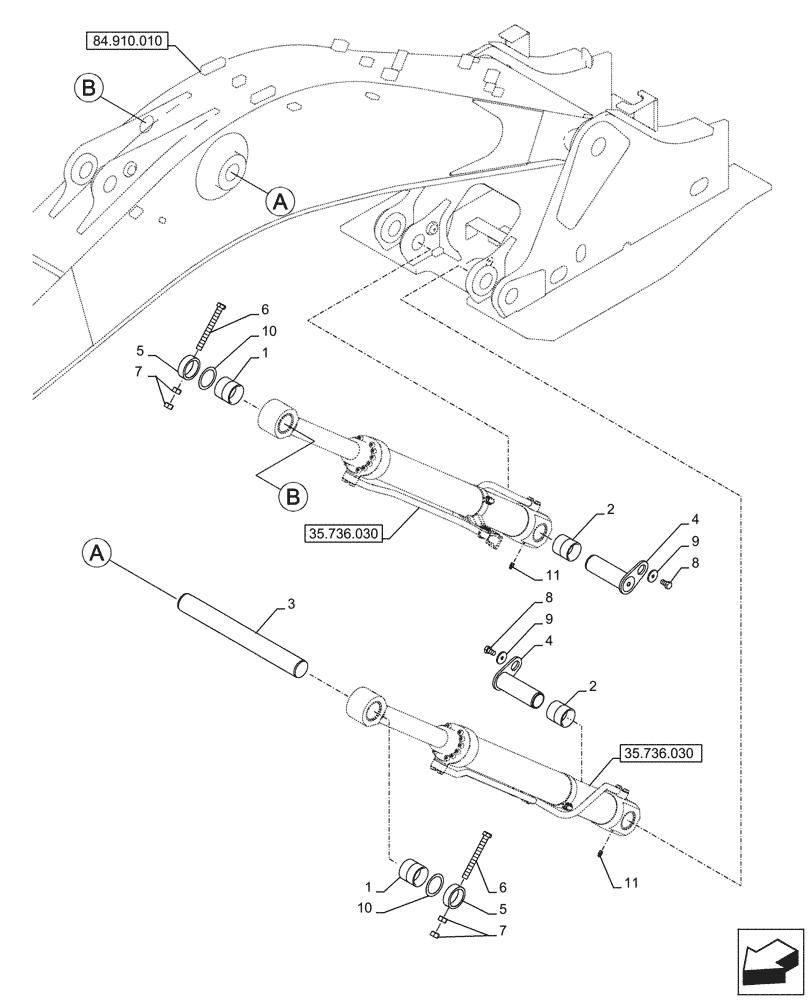

Запчасти Case CX750D RTC ME (84.910.020) - VAR - 461543, 461028 - BOOM, LIFT CYLINDER, PIN, BUSHING (84) - BOOMS, DIPPERS & BUCKETS

1

KUV0036

BUSHING

2шт.

Part in included in Cylinder Assembly PN KWV14450 and KWV14460

1шт.

2

KWV0030

SELF LUB RING

2шт.

Part in included in Cylinder Assembly PN KWV14450 and KWV14460

1шт.

3

KWV12320

PIN

1шт.

4

KWV0050

PIN

2шт.

5

KWV0100

LOCKING RING

2шт.

6

132R024Y220R

BOLT,M24 x 2 x 220mm

2шт.

7

829-13424

NUT,M24 x 2, Cl 10

4шт.

8

102R020Y035R

BOLT

M20 x 35mm

2шт.

9

KWV0090

SPACER

2шт.

10

KWV0101

ADJUSTING PLATE

4шт.

11

153630A1

LUBE NIPPLE

2шт.
