(71.460.010) - VAR - 461028 - BOOM, LUBRICATION LINE

Запчасти Case CX750D RTC ME (71.460.010) - VAR - 461028 - BOOM, LUBRICATION LINE (71) - LUBRICATION SYSTEM

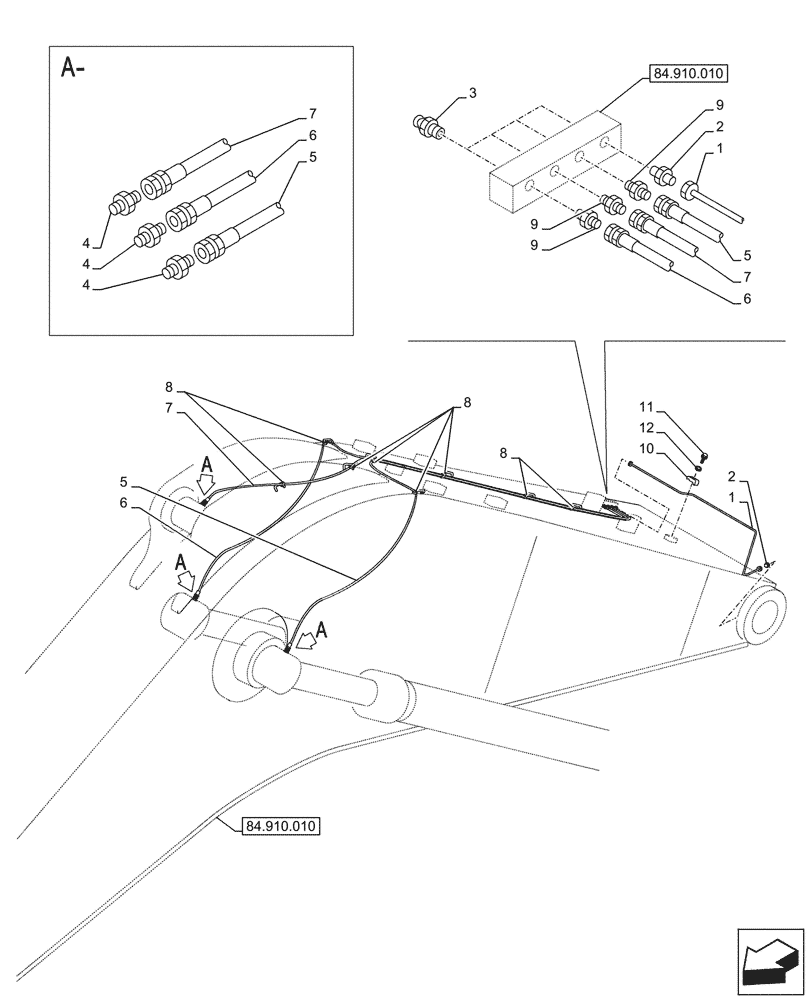

Схема запчастей Case CX750D RTC ME - (71.460.010) - VAR - 461028 - BOOM, LUBRICATION LINE (71) - LUBRICATION SYSTEM
84.910.010
4
1
5
9
8
6
7
1
3
6
2
7
10
5
2
4
7
9
5
11
12
4
6
9
8
8
84.910.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWV10290

HYD TUBE,6 mm ID x 8 mm OD

1шт.

2

152599A1

MULTIPOLE CONNECTOR

2шт.

3

153630A1

LUBE NIPPLE

4шт.

4

153603A1

ADAPTER

3шт.

5

KHJ12770

6mm ID x 3900mm

HYDRAULIC HOSE

1шт.

6

KHJ2747

HOSE,3800.00 mm

6mm ID x 3800mm

1шт.

7

KHJ2813

HOSE,4200.00 mm

6mm ID x 4200mm

1шт.

8

150067A1

MOUNTING CLIP

150mm

8шт.

9

KRJ4050

ADAPTER

3шт.

10

151504A1

CLAMP

1шт.

11

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

12

153081A1

WASHER

1шт.
