(55.530.070) - VAR - 461504 - REAR VIEW CAMERA, WIRE HARNESS, OPTION, COUNTERWEIGHT

Запчасти Case CX750D RTC ME (55.530.070) - VAR - 461504 - REAR VIEW CAMERA, WIRE HARNESS, OPTION, COUNTERWEIGHT (55) - ELECTRICAL SYSTEMS

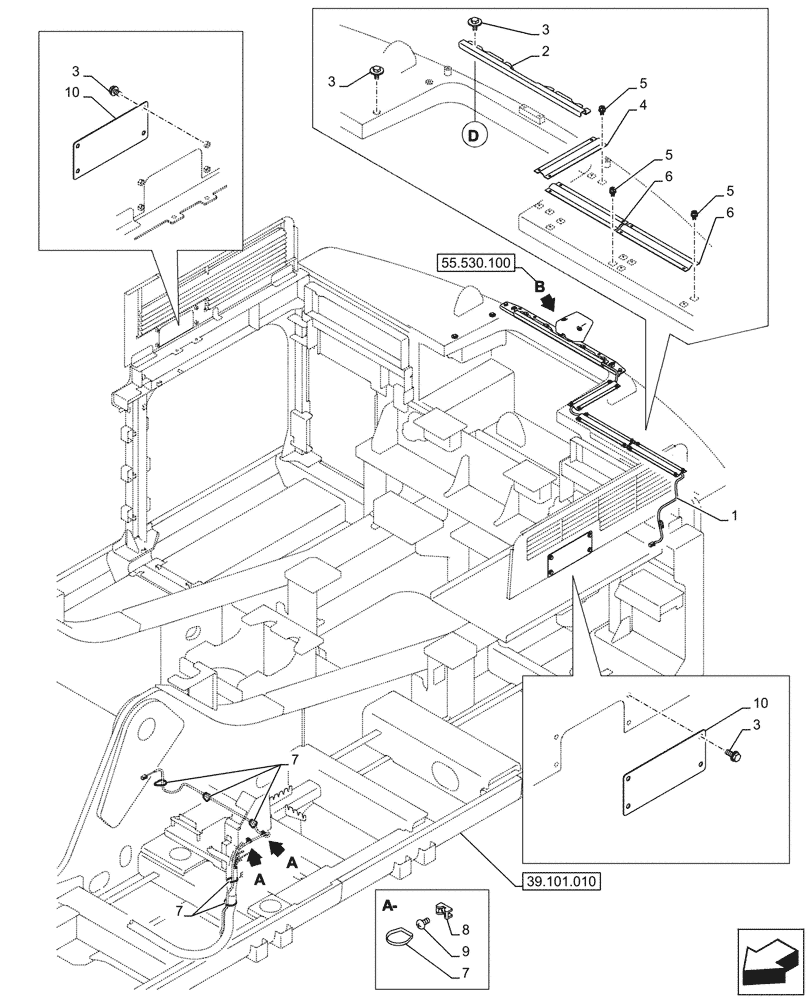

Схема запчастей Case CX750D RTC ME - (55.530.070) - VAR - 461504 - REAR VIEW CAMERA, WIRE HARNESS, OPTION, COUNTERWEIGHT (55) - ELECTRICAL SYSTEMS
55.530.100
5
6
6
10
5
7
4
1
7
10
8
9
7
3
3
2
3
5
3
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR45450

WIRE HARNESS

1шт.

2

KWR11140

COVER

1шт.

3

105R012Y025R

BOLT

8шт.

4

KHR45440

COVER

1шт.

5

KHN2308

SCREW

12шт.

6

KHR31010

COVER

2шт.

7

150496A1

MOUNTING CLIP

10шт.

8

150860A1

COLLAR

2шт.

9

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

2шт.

10

KWR11220G4

COVER

2шт.

Выбрано товаров: 10
