(55.514.010) - VAR - 781986- WORKING LIGHT, CAB, W/ FRONT, GUARD

Запчасти Case CX750D RTC ME (55.514.010) - VAR - 781986- WORKING LIGHT, CAB, W/ FRONT, GUARD (55) - ELECTRICAL SYSTEMS

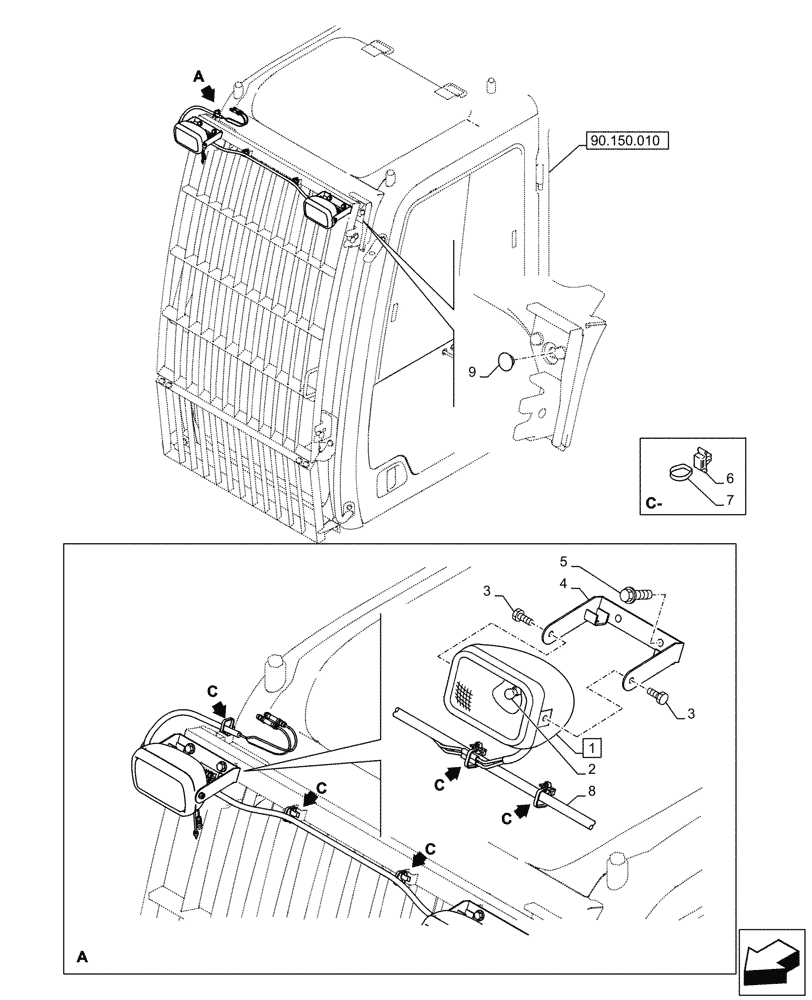

Схема запчастей Case CX750D RTC ME - (55.514.010) - VAR - 781986- WORKING LIGHT, CAB, W/ FRONT, GUARD (55) - ELECTRICAL SYSTEMS
90.150.010
2
3
4
6
5
9
1
7
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR16240

WORK LAMP,Halogen, 24V, 70W, Clear

ASSY, Incl 2, 3

2шт.

2

152812A1

BULB

2шт.

3

KHR3556

BOLT,Spcl

M6 x 16mm

4шт.

4

KHR30120

BRACKET

2шт.

5

166350A1

BOLT

M8 x 20mm

4шт.

6

KHR10220

MOUNTING CLIP

6шт.

7

150496A1

MOUNTING CLIP

250mm

6шт.

8

KHR30190

WIRE HARNESS

1шт.

9

KHN14300

GROMMET

1шт.

Выбрано товаров: 9
