Запчасти Case CX750D RTC ME (55.512.060) - CAB, COMPONENTS (55) - ELECTRICAL SYSTEMS

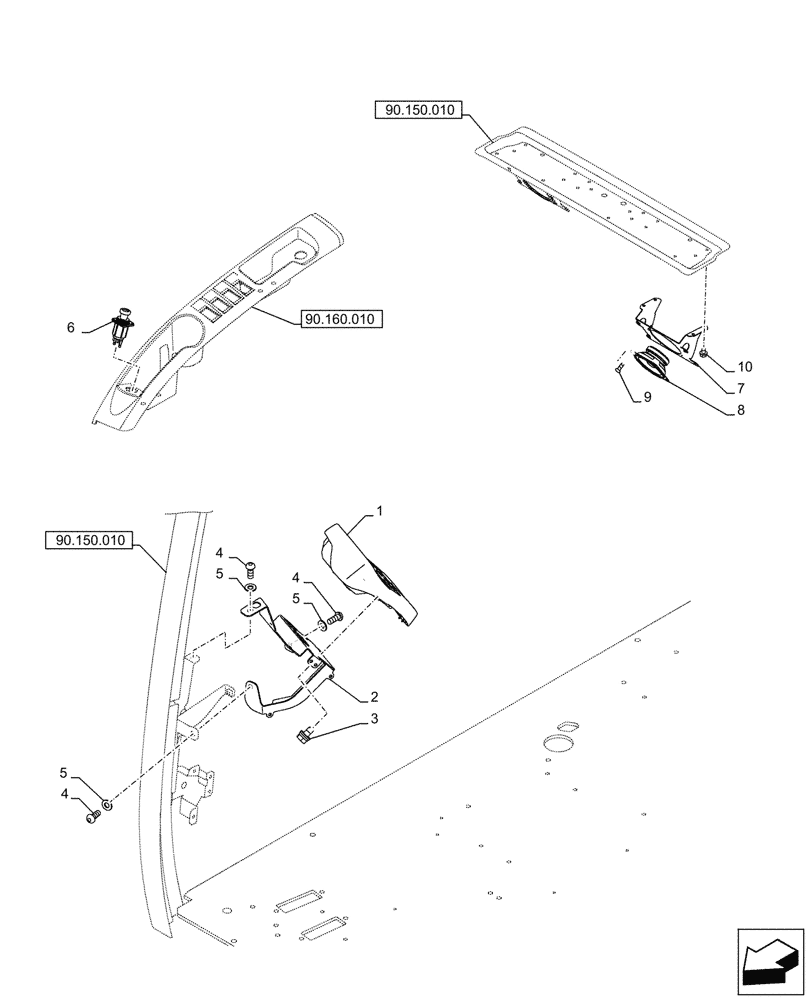

Схема запчастей Case CX750D RTC ME - (55.512.060) - CAB, COMPONENTS (55) - ELECTRICAL SYSTEMS
90.160.010
7
5
5
1
2
3
4
5
4
6
4
10
9
8
90.150.010
90.150.010

Артикул

Название

Примечание

Количество

1

KHR43202

MONITOR

MONITOR

1шт.

2

KHR25010

BRACKET, SUPPORTING

1шт.

3

KHN27480

BOLT

M6 x 12mm

4шт.

4

KHN27490

BOLT

M8 x 20mm

3шт.

5

KHN27500

WASHER

3шт.

6

KHR11210

CIGARETTE LIGHTER

CIGARETTE LIGHTER 24V, 5A

1шт.

7

KHN25650

BRACKET, SUPPORTING

2шт.

8

KHR3366

SPEAKER

SPEAKER

2шт.

9

KHN2716

SCREW,Spcl

8шт.

10

KHN18870

BOLT

M6 x 1.0 x 12mm

4шт.

Выбрано товаров: 10
