(55.510.060) - VAR - 461865, 461868, 461869, 461871 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC ME (55.510.060) - VAR - 461865, 461868, 461869, 461871 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

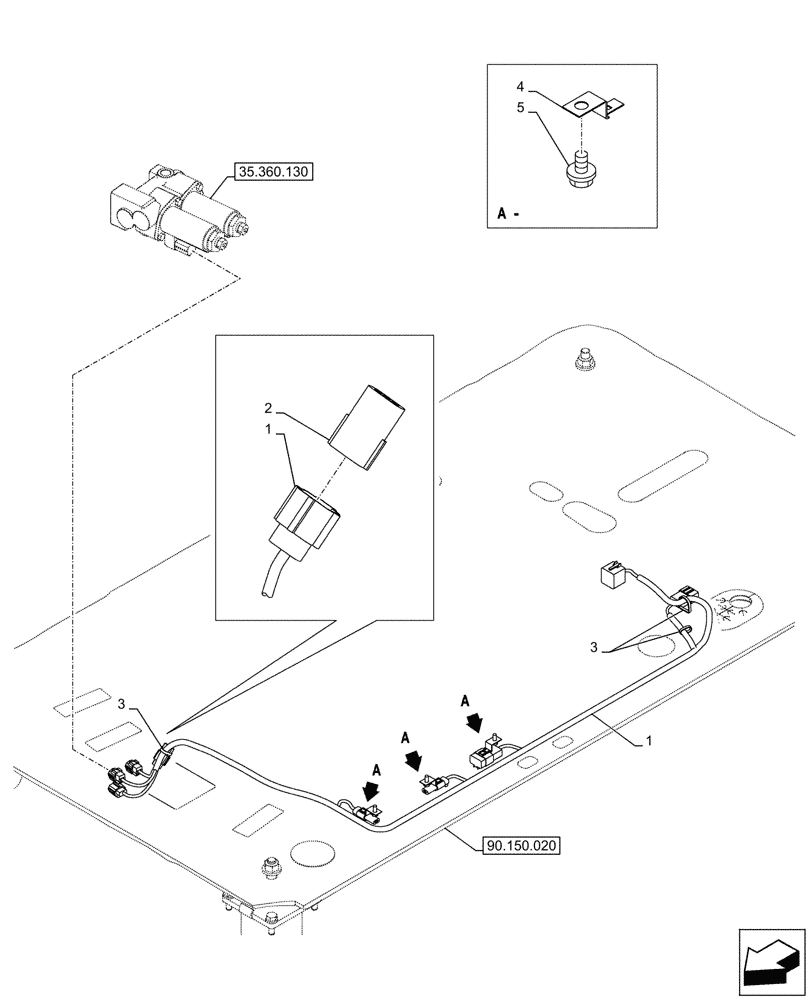

Схема запчастей Case CX750D RTC ME - (55.510.060) - VAR - 461865, 461868, 461869, 461871 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
35.360.130
5
2
4
3
1
3
1
90.150.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR39501

WIRE HARNESS

1шт.

2

KHR45330

ELEC CONNECTOR

1шт.

3

150496A1

MOUNTING CLIP

L=250mm

3шт.

4

165405A1

CLIP

3шт.

5

159602A1

BOLT,Sems, Hex, M6 x 16mm

3шт.
