(55.510.020) - VAR - 461557, 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC ME (55.510.020) - VAR - 461557, 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

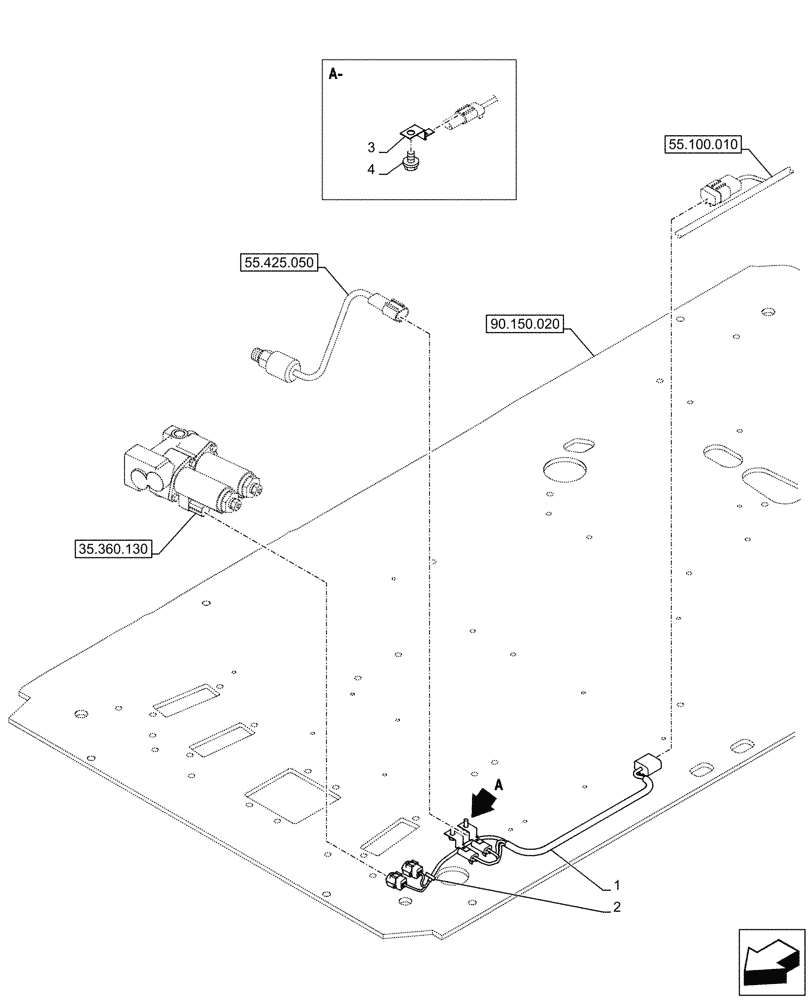

Схема запчастей Case CX750D RTC ME - (55.510.020) - VAR - 461557, 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
35.360.130
1
2
4
3
90.150.020
55.100.010
55.425.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR39520

WIRE HARNESS

1шт.

2

150496A1

MOUNTING CLIP

250mm

1шт.

3

165405A1

CLIP

2шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

Выбрано товаров: 4
