(55.408.020) - VAR - 481064 - PRESSURE SWITCH, BOOM, SAFETY VALVE

Запчасти Case CX750D RTC ME (55.408.020) - VAR - 481064 - PRESSURE SWITCH, BOOM, SAFETY VALVE (55) - ELECTRICAL SYSTEMS

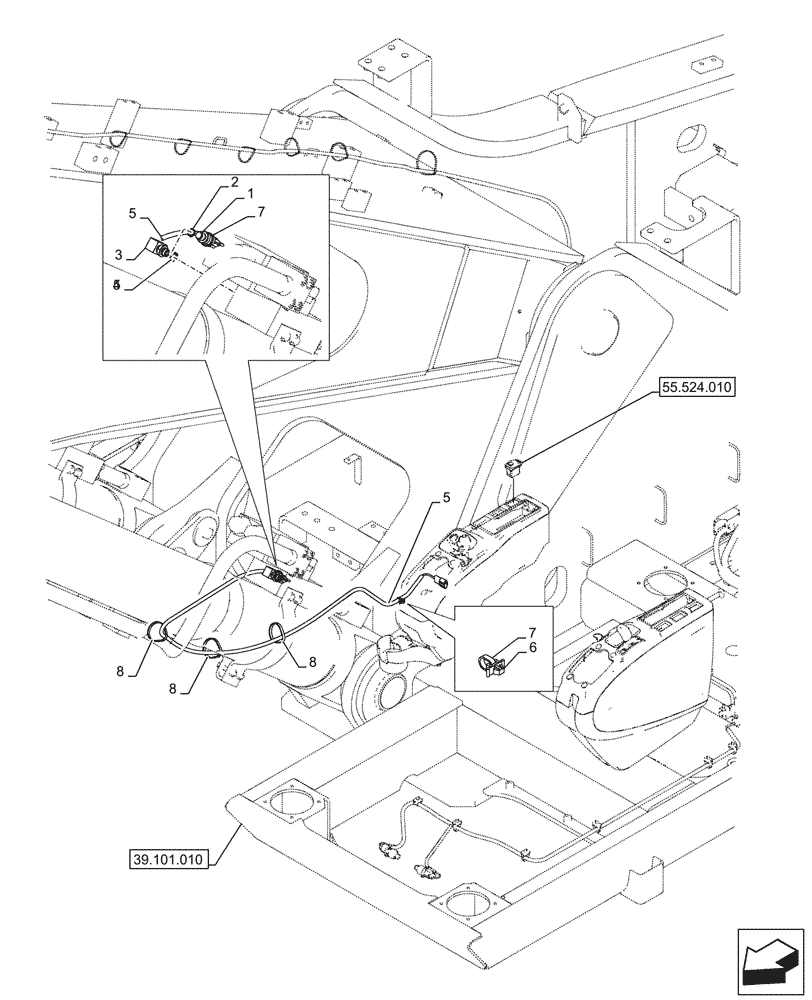

Схема запчастей Case CX750D RTC ME - (55.408.020) - VAR - 481064 - PRESSURE SWITCH, BOOM, SAFETY VALVE (55) - ELECTRICAL SYSTEMS
55.524.010
6
1
8
5
7
5
4
8
8
3
7
5
2
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR41950

SENSOR

ASSY, Incl 2

1шт.

2

UCP0101

O-RING

1шт.

3

KHJ18300

ELBOW

ASSY, Incl 4

1шт.

4

150031A1

O-RING,10mm ID x 24mm OD

1шт.

5

KHR49740

WIRE HARNESS

1шт.

6

KHR10220

MOUNTING CLIP

1шт.

7

150496A1

MOUNTING CLIP

2шт.

8

150071A1

MOUNTING CLIP

4шт.

Выбрано товаров: 8
