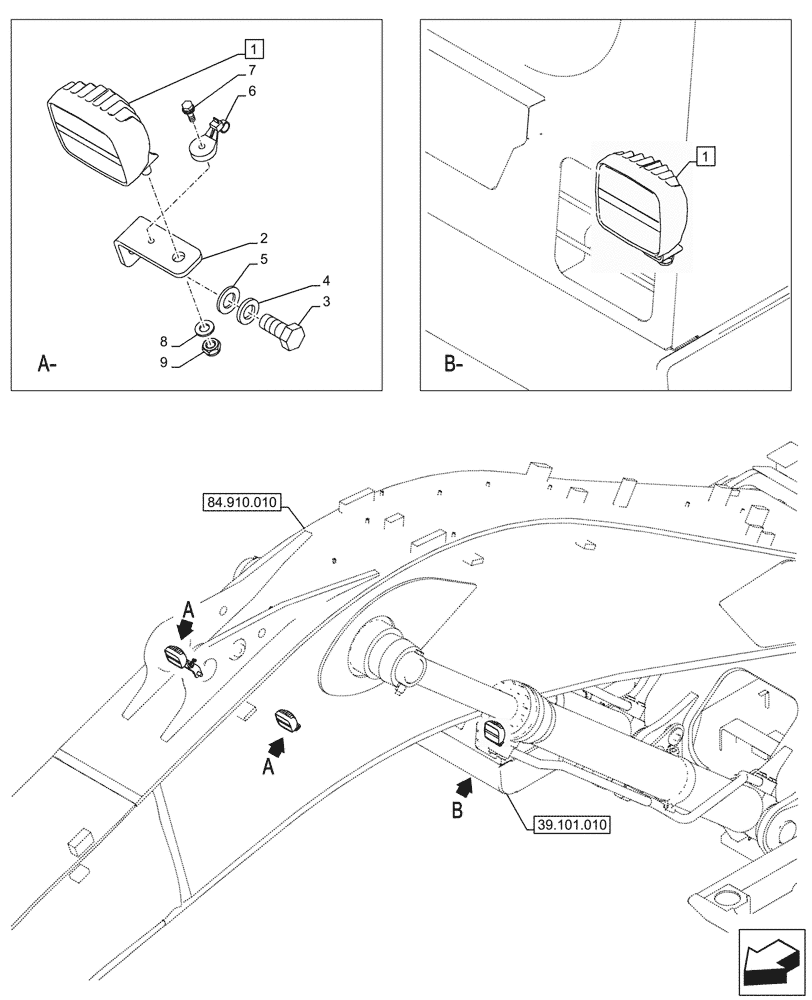

Запчасти Case CX750D RTC ME (55.404.010) - VAR - 488135 - WORKING LIGHT, BOOM (55) - ELECTRICAL SYSTEMS

1

KHR49790

LAMP

ASSY, Incl 7, 8

3шт.

2

KHR49940

BRACKET

2шт.

3

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

4

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

2шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

6

KHR2583

CLAMP

2шт.

7

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

8

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

2шт.

9

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

2шт.
