(55.036.020) - HYDRAULIC SYSTEM, SENSOR

Запчасти Case CX750D RTC ME (55.036.020) - HYDRAULIC SYSTEM, SENSOR (55) - ELECTRICAL SYSTEMS

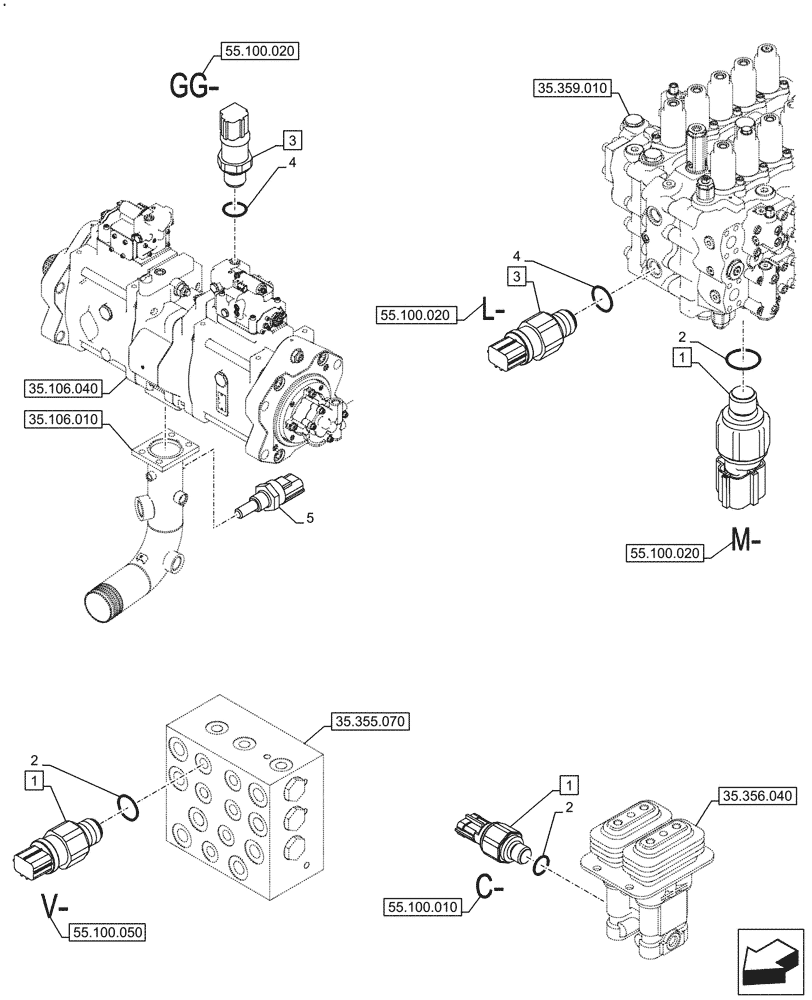

Схема запчастей Case CX750D RTC ME - (55.036.020) - HYDRAULIC SYSTEM, SENSOR (55) - ELECTRICAL SYSTEMS
35.106.040
3
3
1
2
5
2
2
4
1
4
1
35.106.010
55.100.010
55.100.020
55.100.020
55.100.020
35.356.040
35.355.070
55.100.050
35.359.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY, Pressure Sensor, Incl 2

11шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

11шт.

3

KHR41950

SENSOR

ASSY, Pressure Sensor, Incl 4

4шт.

4

UCP0101

O-RING

4шт.

5

KHR2433

SENSOR

Temperature Sensor

1шт.

Выбрано товаров: 5
