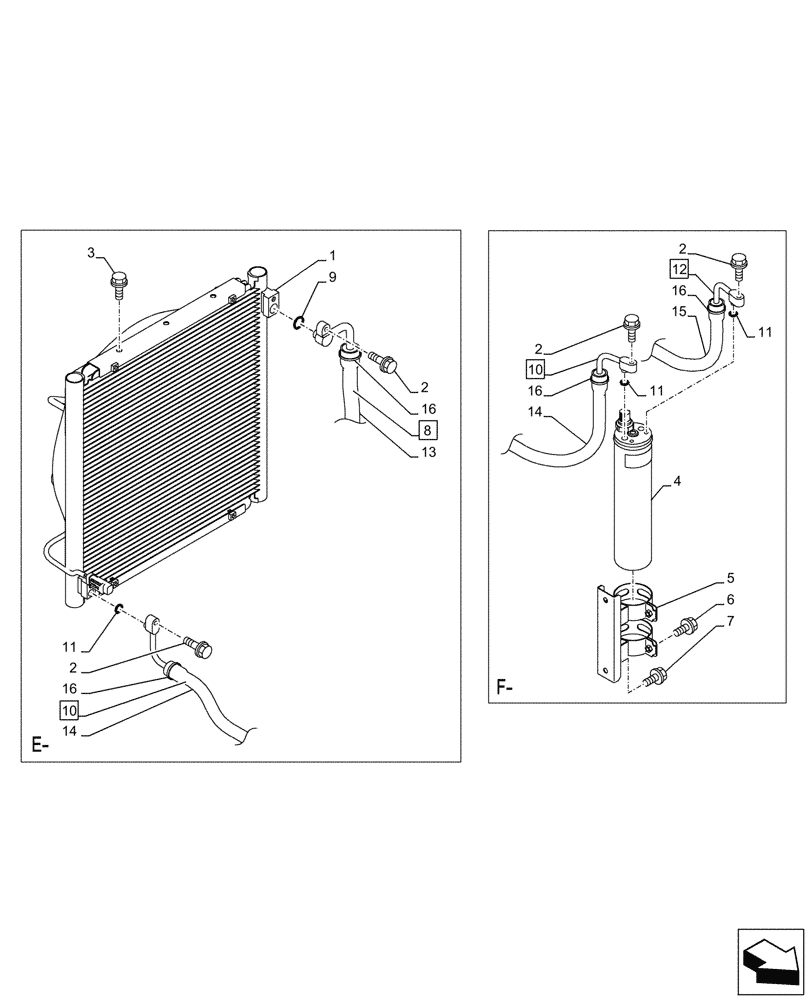

Запчасти Case CX750D RTC ME (50.200.040) - AIR CONDITIONING, CONDENSER (50) - CAB CLIMATE CONTROL

1

KHR25311

CONDENSER

1шт.

2

162043A1

BOLT,Spcl, M6

M6 x 28mm

4шт.

3

166350A1

BOLT

M8 x 20mm

6шт.

4

KHR13590

RECEIVER-DRYER

1шт.

5

KHR13600

BRACKET

1шт.

6

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

7

167320A1

BOLT,Spcl, M8 x 20mm

2шт.

8

KHR49080

HOSE

ASSY, Incl 9

1шт.

See also Figure 50.200.030

1шт.

9

169053A1

O-RING

1шт.

10

KHR49100

HOSE

ASSY, Incl 11 (Qty 2)

1шт.

11

169054A1

O-RING

4шт.

12

KHR49110

HOSE

ASSY, Incl 11 (Qty 2)

1шт.

13

KHR15920

PLASTIC-RUBBER TUBE

19mm ID x 4900mm

1шт.

14

KRH18090

TUBE

1шт.

15

162878A1

PLASTIC-RUBBER TUBE

15mm ID x 2800mm

1шт.

16

150496A1

MOUNTING CLIP

250mm

1шт.
