/ / / / / / / / (50.200.020) - AIR CONDITIONING, LINES

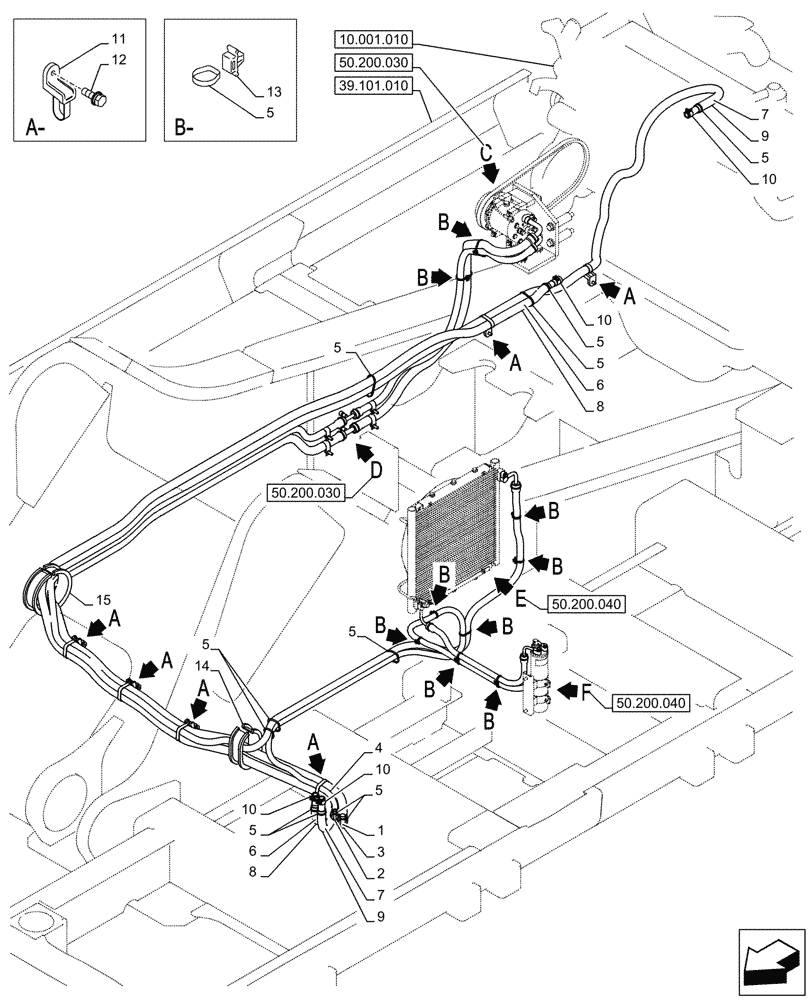

Запчасти Case CX750D RTC ME (50.200.020) - AIR CONDITIONING, LINES (50) - CAB CLIMATE CONTROL
5
1
9
5
5
11
10
8
5
7
13
5
9
6
10
12
5
8
14
6
5
10
5
5
15
2
10
7
3
4
39.101.010
50.200.040
50.200.040
10.001.010
50.200.030
50.200.030
1
KHR49090
HOSE
ASSY
1шт.
See also Figure 50.200.030
1шт.
2
KHR49110
HOSE
ASSY
1шт.
See also Figure 50.200.040
1шт.
3
KBR10900
PLASTIC-RUBBER TUBE
25mm ID x 3500mm
1шт.
4
162878A1
PLASTIC-RUBBER TUBE
15mm ID x 2800mm
1шт.
5
150496A1
MOUNTING CLIP
250mm
1шт.
6
KHR21540
HOSE
1шт.
7
KHR41290
HOSE
1шт.
8
KBR10910
TUBE
1шт.
9
KNR13680
TUBE
1шт.
10
KHH10750
COLLAR
1шт.
11
KHR2581
CLAMP
M8
1шт.
12
KHJ1215
BOLT,Spcl
M8 x 25mm
6шт.
13
KHR10220
MOUNTING CLIP
1шт.
14
KUR0067
GROMMET
1шт.
15
KTA1036
SEAL, RUBBER
1шт.
