(50.104.010) - AIR CONDITIONING, W/ HEATER, AIR DUCT

Запчасти Case CX750D RTC ME (50.104.010) - AIR CONDITIONING, W/ HEATER, AIR DUCT (50) - CAB CLIMATE CONTROL

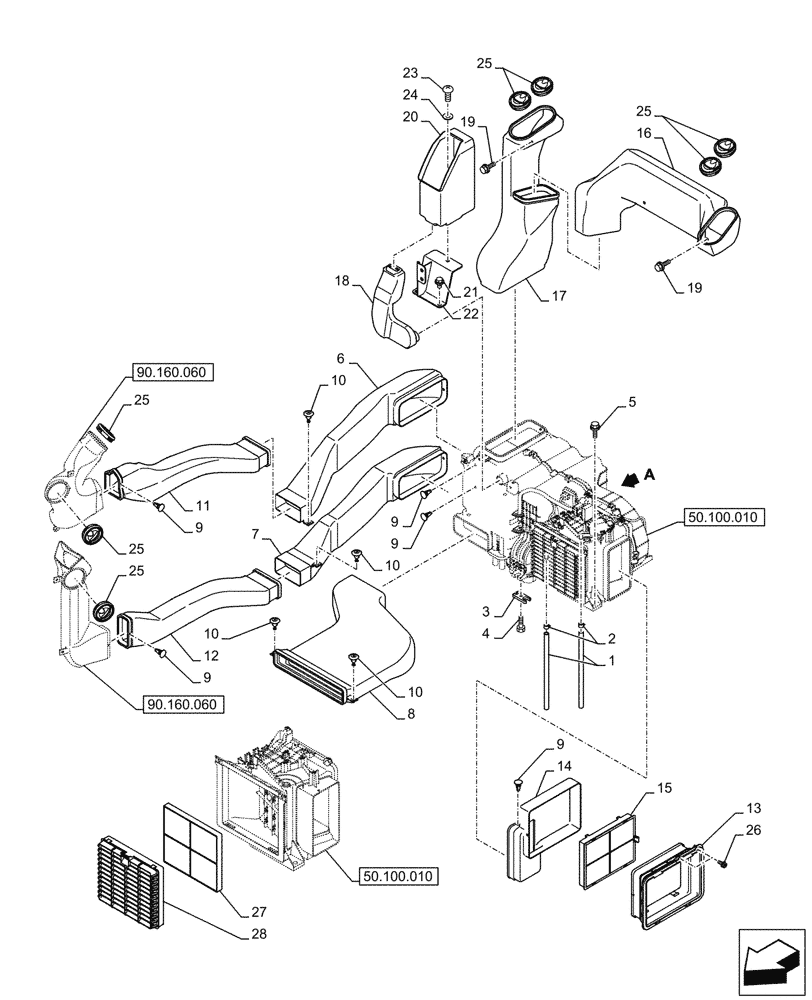

Схема запчастей Case CX750D RTC ME - (50.104.010) - AIR CONDITIONING, W/ HEATER, AIR DUCT (50) - CAB CLIMATE CONTROL
50.100.010
25
9
22
9
9
21
12
13
10
4
25
9
8
1
25
11
26
10
17
24
7
14
10
16
28
15
5
9
6
27
10
20
19
23
25
3
25
18
2
19
90.160.060
90.160.060
50.100.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR3574

HOSE

2шт.

2

159622A1

MOUNTING CLIP

2шт.

3

KHR10420

PLATE

1шт.

4

KHR2464

BOLT

M6 x 20mm

1шт.

5

KHJ2298

BOLT,Spcl

M10 x 25mm

6шт.

6

KHR27070

DUCT

1шт.

7

KHR27080

DUCT

1шт.

8

KHR27110

DUCT

1шт.

9

KHR27960

PIN

5шт.

10

KHR13950

CLIP

4шт.

11

KHR27050

DUCT

1шт.

12

KHR27060

DUCT

1шт.

13

KHR27121

DUCT

M8 x 16mm

1шт.

14

KHR27130

DUCT

M8 x 16mm

1шт.

15

KHR27260

CAB FILTER

Suction

1шт.

16

KHR27090

DUCT

VENT(LEFT)

1шт.

17

KHR27100

DUCT

VENT(RIGHT)

1шт.

18

KHR27140

DUCT

1шт.

19

KHN2132

BOLT,Hex Flg Hd, M6 x 16

3шт.

20

KHR27270

BOX

1шт.

21

KHR24720

BRACKET, SUPPORTING

1шт.

22

166345A1

BOLT

M8 x 16mm

2шт.

23

158404A1

DRAIN PLUG

M8 x 16mm

1шт.

24

KHN2312

WASHER

1шт.

25

KHR21451

LOUVER

7шт.

26

KHR41770

CLIP

1шт.

27

KHR27540

CAB FILTER

Circulation

1шт.

Part is included in Air Conditioner Assembly PN KHR27160

1шт.

28

KHR27550

FILTER COVER

1шт.

Part is included in Air Conditioner Assembly PN KHR27160

1шт.
