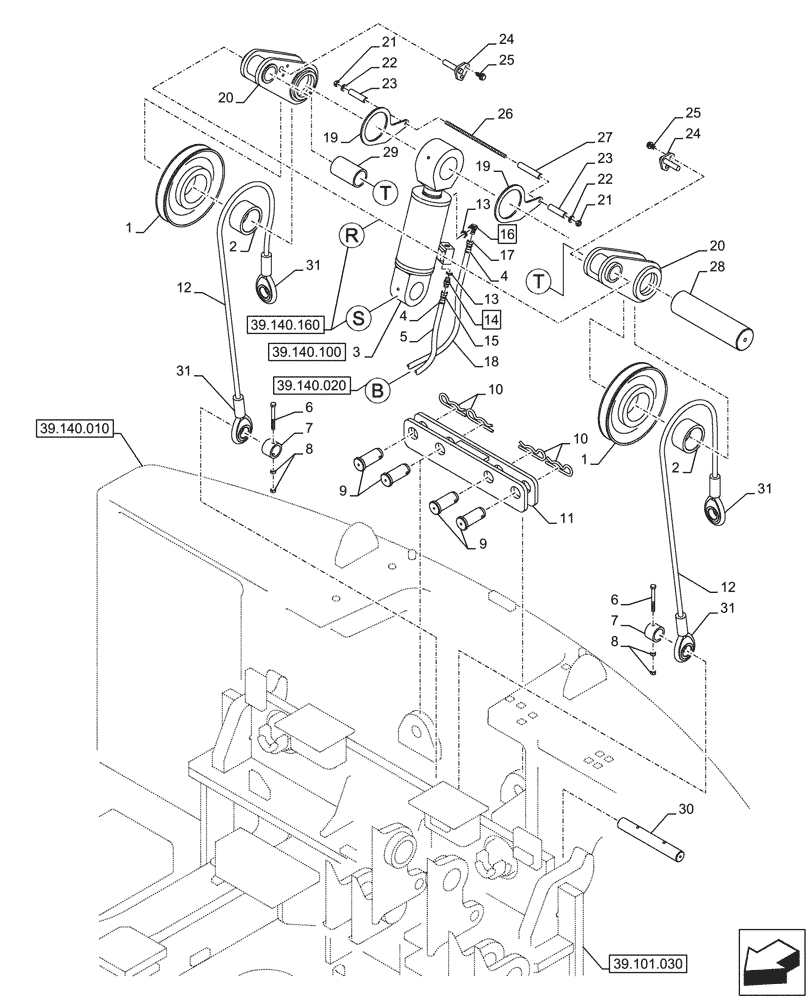

Запчасти Case CX750D RTC ME (39.140.090) - VAR - 481263 - PULLEY & BELT, HYDRAULIC, COUNTERWEIGHT (39) - FRAMES AND BALLASTING

1

KUB0165

PULLEY

2шт.

2

KUB0180

BUSHING

2шт.

3

KUB0156

HYDRAULIC CYLINDER

1шт.

4

150496A1

MOUNTING CLIP

4шт.

5

KRH12300

PLASTIC-RUBBER TUBE

From Manifold to Cylinder

1шт.

6

102R008Y080R

BOLT

2шт.

7

KUB0176

COLLAR

2шт.

8

162R008VR

NUT

4шт.

9

KUB0161

PIN

4шт.

10

C4E6684

SPLIT PIN/SAFETY PIN

4шт.

11

KUB0172

BRACKET

1шт.

12

KWB10910

ROPE

ASSY, Incl 31

2шт.

13

150031A1

O-RING,10mm ID x 24mm OD

2шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 13 (Qty 1)

1шт.

15

KHJ35730

HYDRAULIC HOSE

1шт.

16

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

ASSY, Incl 13 (Qty 1)

1шт.

17

KAJ4281

HYDRAULIC HOSE,9.50 mm ID x 1400.00 mm

1шт.

18

157768A1

PLASTIC-RUBBER TUBE

From Manifold to Cylinder

1шт.

19

KUB0160

PLATE

2шт.

20

KUB0158

LINK

2шт.

21

162R012VR

NUT

2шт.

22

150811A1

WASHER

2шт.

23

KUB0171

SPACER

2шт.

24

KUB0159

PLATE

2шт.

25

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

26

KUB0178

ROD,THREADED

1шт.

27

KUB0170

SPACER

1шт.

28

KUB0166

PIN

1шт.

29

KUB0179

SPACER

1шт.

30

KUB0174

PIN

1шт.

31

NSS

NOT SOLD SEPARAT

Thimble, Incl in 12

4шт.
