Запчасти Case CX750D RTC ME (39.140.040) - VAR - 481263 - SOLENOID VALVE, HYDRAULIC, COUNTERWEIGHT, COMPONENTS (39) - FRAMES AND BALLASTING

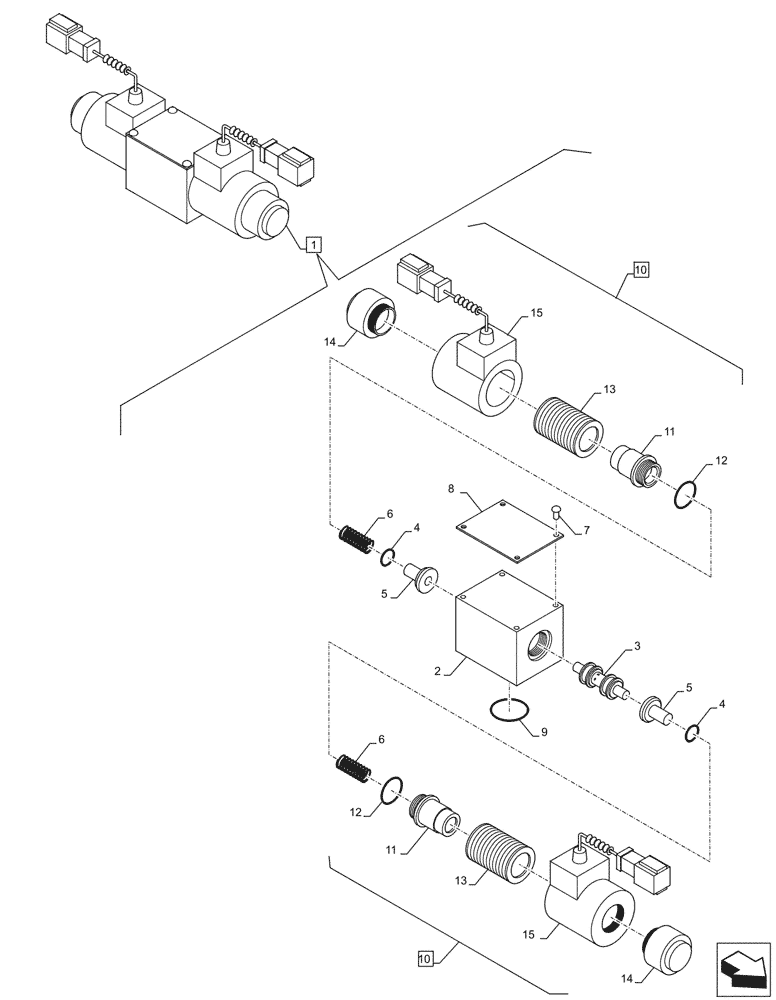

Схема запчастей Case CX750D RTC ME - (39.140.040) - VAR - 481263 - SOLENOID VALVE, HYDRAULIC, COUNTERWEIGHT, COMPONENTS (39) - FRAMES AND BALLASTING
5
2
8
10
14
12
1
13
7
15
10
4
15
3
4
14
12
9
1
6
5
13
1
11
6

Артикул

Название

Примечание

Количество

1

KUJ0288

SOLENOID VALVE

ASY, Incl 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

Case, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Oring, Incl in 1

2шт.

5

NSS

NOT SOLD SEPARAT

Stud, Incl in 1

2шт.

6

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

7

NSS

NOT SOLD SEPARAT

Rivet, Incl in 1

4шт.

8

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

9

154459A1

O-RING

4шт.

10

LL00099

SOLENOID

ASSY,Incl 11 - 15

2шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

2шт.

12

154487A1

O-RING

2шт.

13

NSS

NOT SOLD SEPARAT

Spring, Incl in 10

2шт.

14

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

2шт.

15

NSS

NOT SOLD SEPARAT

Case, Incl in 10

2шт.

Выбрано товаров: 15
