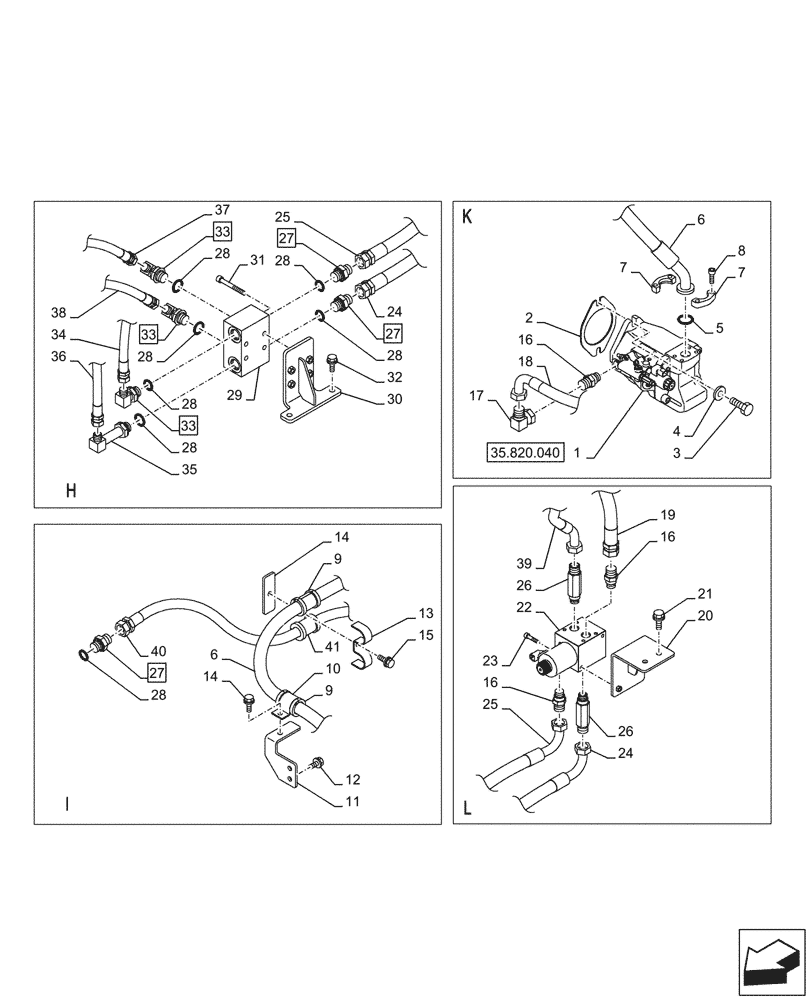

Запчасти Case CX750D RTC ME (35.820.020) - FAN, RADIATOR, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
KWH11990
PUMP
1шт.
2
KWH12000
SHIM
1шт.
3
132R014Y040R
BOLT
2шт.
4
150418A1
WASHER
2шт.
5
162246A1
O-RING
1шт.
6
KWJ15470
HYDRAULIC HOSE
From Pump Piston to Manifold Valve
1шт.
7
153459A1
FLANGE
2шт.
8
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
4шт.
9
KHJ21550
HOSE CLAMP
2шт.
10
KHJ2025
CLAMP
40mm
1шт.
11
KWJ15420
BRACKET
1шт.
12
166052A1
BOLT
M10 x 25mm
3шт.
13
KHJ2029
CLAMP
1шт.
14
KWJ12540
BRACKET
1шт.
15
166347A1
BOLT,Sems, M10 x 30mm
1шт.
16
AEV0623
STUD
3шт.
17
167908A1
ELBOW
1шт.
18
KWJ15130
HYDRAULIC HOSE
From Pump Piston to Sump Tank
1шт.
19
KWJ12390
HYDRAULIC HOSE
From Manifold Valve to Valve Solenoid Oil Cooler
1шт.
20
KWJ12640
BRACKET
1шт.
21
105R012Y025R
BOLT
M12 x 25mm
2шт.
22
KWH11060
VALVE
1шт.
23
108R008Y040R
BOLT
2шт.
24
KWJ12400
HYDRAULIC HOSE
From Manifold Valve to Valve Solenoid Oil Cooler
1шт.
25
KWJ12450
HYDRAULIC HOSE
From Manifold Valve to Valve Solenoid Oil Cooler
1шт.
26
KHJ35770
STUD
2шт.
27
151654A1
HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT
ASSY, Incl 28 (Qty 3)
3шт.
28
150542A1
O-RING
7шт.
29
KWJ15140
MANIFOLD
1шт.
30
KWJ12650
BRACKET
1шт.
31
862-10085
HEX SOC SCREW,M10 x 85mm, Cl 12.9
4шт.
32
166352A1
BOLT
M12 x 30mm
2шт.
33
157936A1
ELBOW
ASSY, G3/4" x G1/2", Incl 28 (Qty 3)
3шт.
34
KWJ12410
HYDRAULIC HOSE
From Manifold Valve to Motor Piston Radiator
1шт.
35
KHJ17650
ELBOW
ASSY, G3/4" x G1/2", Incl 28 (Qty 1)
1шт.
36
KWJ12420
HYDRAULIC HOSE
From Manifold Valve to Motor Piston Radiator
1шт.
37
KWJ12430
HYDRAULIC HOSE
From Manifold Valve to Motor Piston Radiator Oil
1шт.
38
KWJ15150
HYDRAULIC HOSE
From Manifold Valve to Motor Piston Radiator Oil
1шт.
39
KWJ12460
HYDRAULIC HOSE
From Valve Solenoid Oil Cooler to Manifold Valve
1шт.
40
KTJ12080
HYDRAULIC HOSE
19mm ID x 1050mm, From Radiator to Manifold Valve
1шт.
41
KHJ2022
HOSE CLAMP
1шт.
Выбрано товаров: 41
