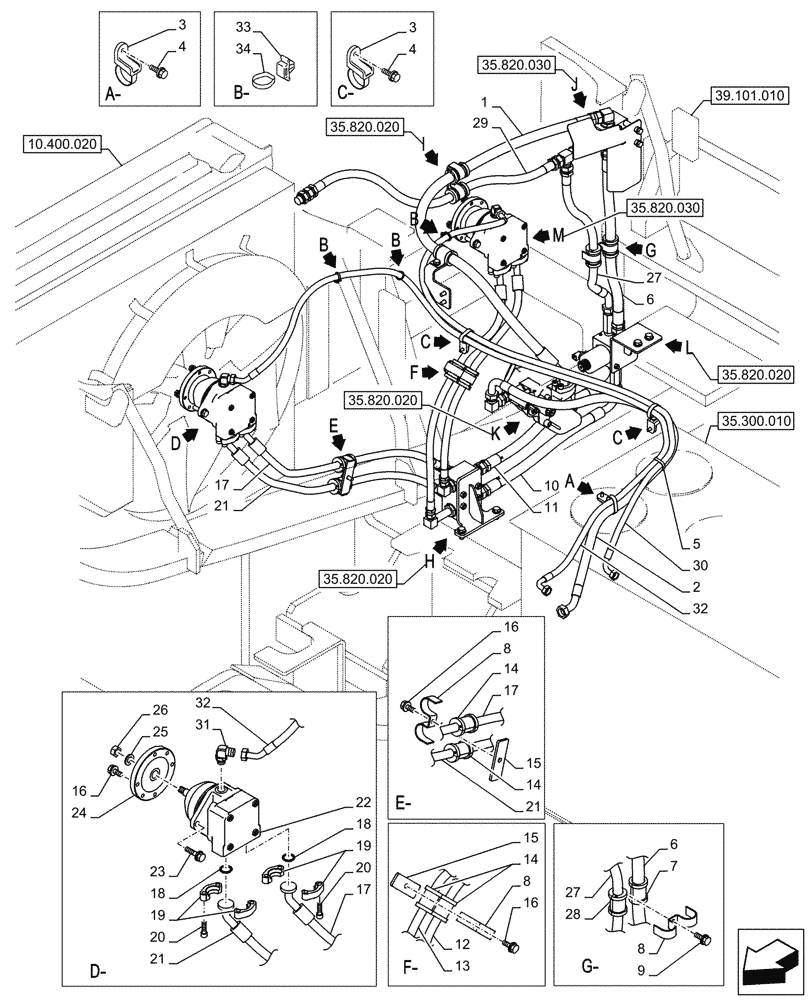

Запчасти Case CX750D RTC ME (35.820.010) - FAN, RADIATOR, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

KWJ15470

HYDRAULIC HOSE

From Pump Piston to Manifold Valve

1шт.

2

KWJ15130

HYDRAULIC HOSE

From Pump Piston to Sump Tank

1шт.

3

KHR2581

CLAMP

M8

3шт.

4

KHJ1215

BOLT,Spcl

M8 x 25mm

3шт.

5

150071A1

MOUNTING CLIP

380mm

1шт.

6

KWJ12390

HYDRAULIC HOSE

From Manifold Valve to Valve Solenoid Oil Cooler

1шт.

7

KHJ21550

HOSE CLAMP

1шт.

8

KHJ2029

CLAMP

3шт.

9

166351A1

BOLT,Sems, M10 x 20mm

1шт.

10

KWJ12400

HYDRAULIC HOSE

From Manifold Valve to Valve Solenoid Oil Cooler

1шт.

11

KWJ12450

HYDRAULIC HOSE

From Manifold Valve to Valve Solenoid Oil Cooler

1шт.

12

KWJ12410

HYDRAULIC HOSE

From Manifold Valve to Motor Piston Radiator

1шт.

13

KWJ12420

HYDRAULIC HOSE

From Manifold Valve to Motor Piston Radiator

1шт.

14

KHJ2021

HOSE CLAMP

4шт.

15

KWJ12540

BRACKET

2шт.

16

166347A1

BOLT,Sems, M10 x 30mm

6шт.

17

KWJ12430

HYDRAULIC HOSE

From Manifold Valve to Motor Piston Radiator Oil

1шт.

18

161097A1

O-RING

2шт.

19

152598A1

HALF-COLLAR

4шт.

20

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

21

KWJ15150

HYDRAULIC HOSE

From Manifold Valve to Motor Piston Radiator Oil

1шт.

22

KWH11050

PISTON

1шт.

23

105R012Y045R

BOLT

M12 x 45mm

2шт.

24

KWH11010

FAN

1шт.

25

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

26

KHH19110

NUT

1шт.

27

KWJ12460

HYDRAULIC HOSE

From Valve Solenoid Oil Cooler to Manifold Valve

1шт.

28

KHJ2022

HOSE CLAMP

1шт.

29

KTJ12080

HYDRAULIC HOSE

19mm ID x 1050mm, From Radiator to Manifold Valve

1шт.

30

KWJ15160

HYDRAULIC HOSE

From Motor Piston Radiator to Sump Tank

1шт.

31

BRJ0198

ELBOW

1шт.

32

KWJ15170

HYDRAULIC HOSE

1шт.

33

KHR10220

MOUNTING CLIP

3шт.

34

150496A1

MOUNTING CLIP

250mm

3шт.
