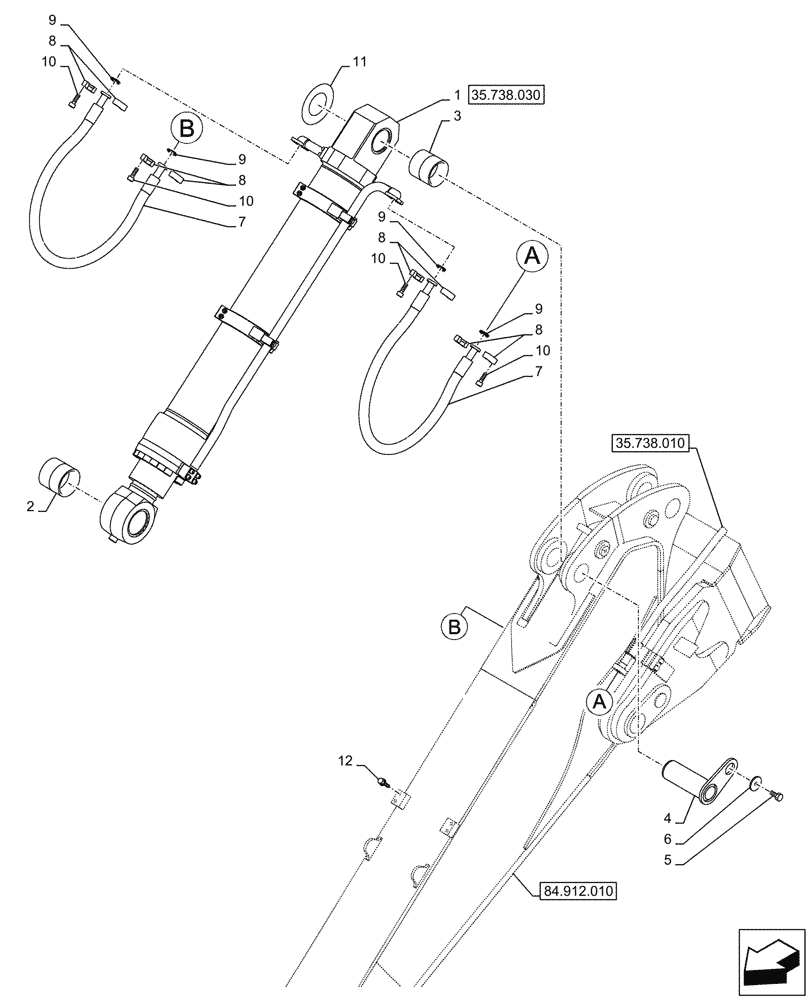

Запчасти Case CX750D RTC ME (35.738.020) - VAR - 461572 - BUCKET CYLINDER, LINES (ARM L=3.02M) (35) - HYDRAULIC SYSTEMS

1

KWV14490

HYDRAULIC CYLINDER

ASSY, Incl 2, 3

1шт.

2

KUV0036

BUSHING

1шт.

3

KTV1125

SELF LUB RING

1шт.

4

KWV0046

PIN

1шт.

5

102R020Y035R

BOLT

1шт.

6

KWV0090

SPACER

1шт.

7

KWV11760

HOSE ASSY.,1950.00 mm

2шт.

8

150124A1

FLANGE

8шт.

9

153626A1

O-RING

4шт.

10

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

16шт.

11

KMV1518

SHIM,0.6mm Thk

4шт.

12

166348A1

BOLT

4шт.
