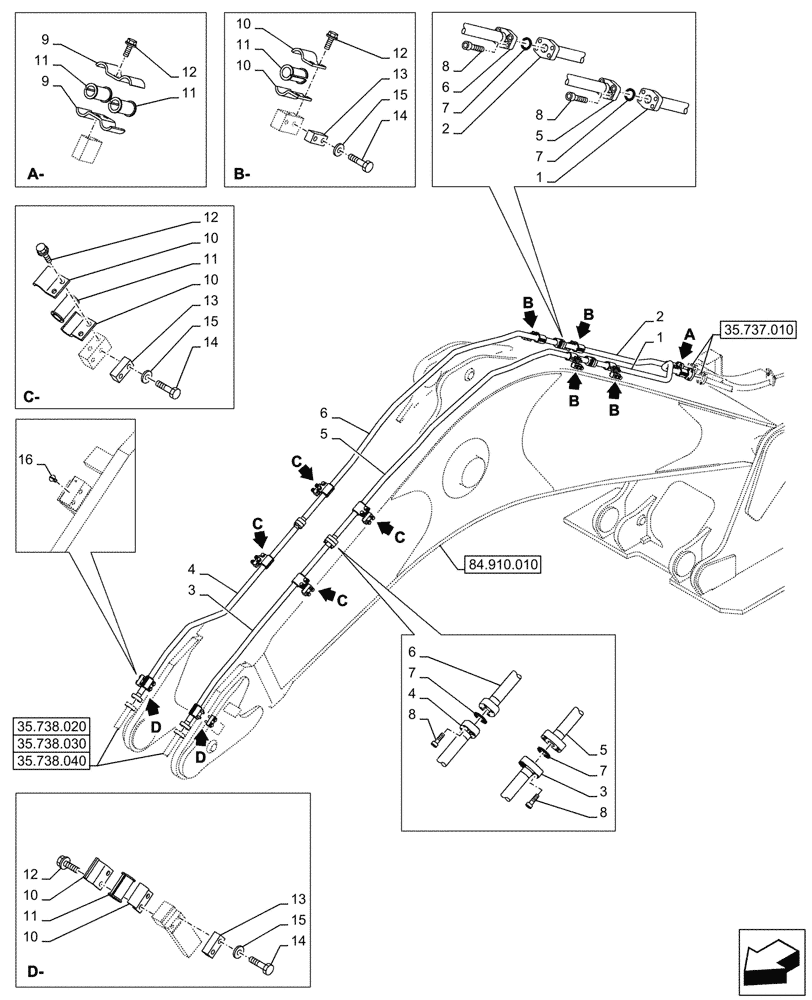

Запчасти Case CX750D RTC ME (35.738.010) - VAR - 461028 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

KWV10160

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

2

KWV10170

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

3

KWV10180

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

4

KWV10190

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

5

KWV10580

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

6

KWV10590

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

7

153626A1

O-RING

4шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

16шт.

9

KWV0086

CLAMP

2шт.

10

KWV0087

CLAMP

20шт.

11

KWV11570

GROMMET

12шт.

12

165929A1

BOLT,Sems, M16

22шт.

13

KWV0115

SPACER

10шт.

14

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

20шт.

15

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

20шт.

16

KHJ15080

CAP

2шт.
