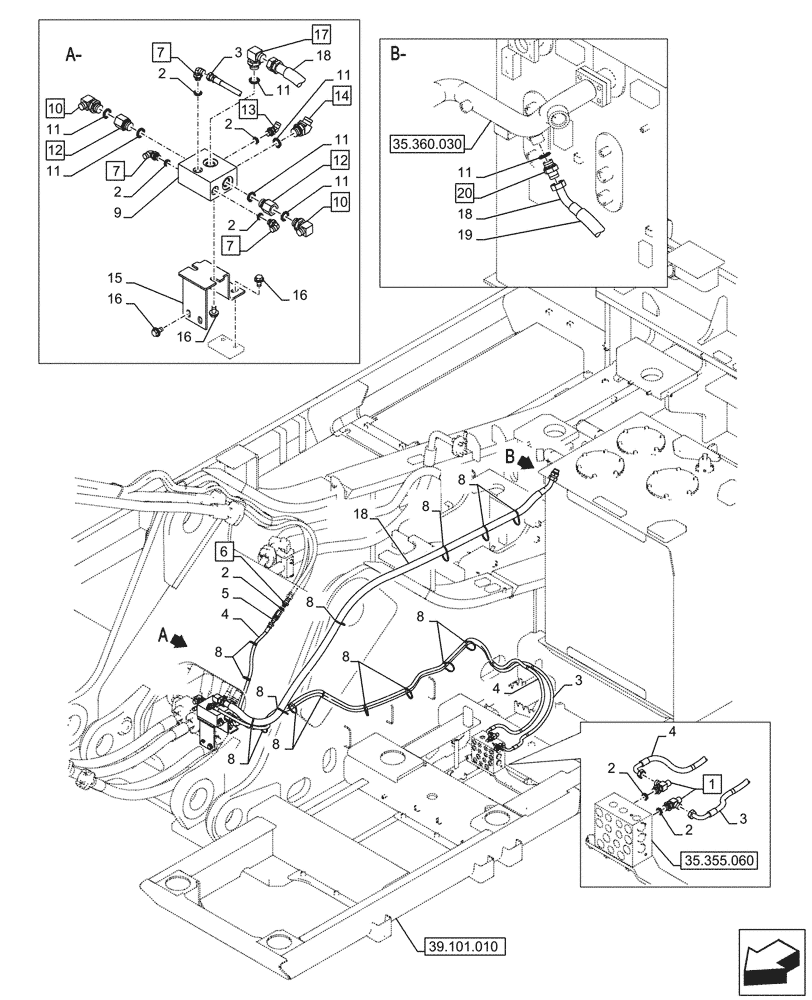

Запчасти Case CX750D RTC ME (35.737.030) - VAR - 481064 - ARM, CYLINDER, LINES, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

1

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 2

2шт.

2

150031A1

O-RING,10mm ID x 24mm OD

7шт.

3

KHJ37680

HYDRAULIC HOSE

1шт.

4

KHJ33850

HYDRAULIC HOSE

9mm ID x 3500mm, From Manifold to Arm Cylinder

1шт.

5

KHJ1078

ADAPTER

1шт.

6

KRJ1231

ADAPTER

ASSY, Incl 2

1шт.

7

KHJ28590

ELBOW

ASSY, Incl 2

3шт.

8

150496A1

MOUNTING CLIP

250mm

12шт.

9

KWJ11070

VALVE SECTION

1шт.

10

157936A1

ELBOW

ASSY, Incl 11

2шт.

11

150542A1

O-RING

6шт.

12

159198A1

ADAPTER

ASSY, Incl 11

2шт.

13

KHJ28640

ELBOW

ASSY, Incl 2

1шт.

14

157586A1

ELBOW

ASSY, Incl 11

1шт.

15

KWJ15340

BRACKET

1шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

17

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, Incl 11

1шт.

18

KWJ15390

HYDRAULIC HOSE

13mm ID x 2330mm

1шт.

19

157869A1

TUBE

28mm ID x 2300mm

1шт.

20

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 11

1шт.
