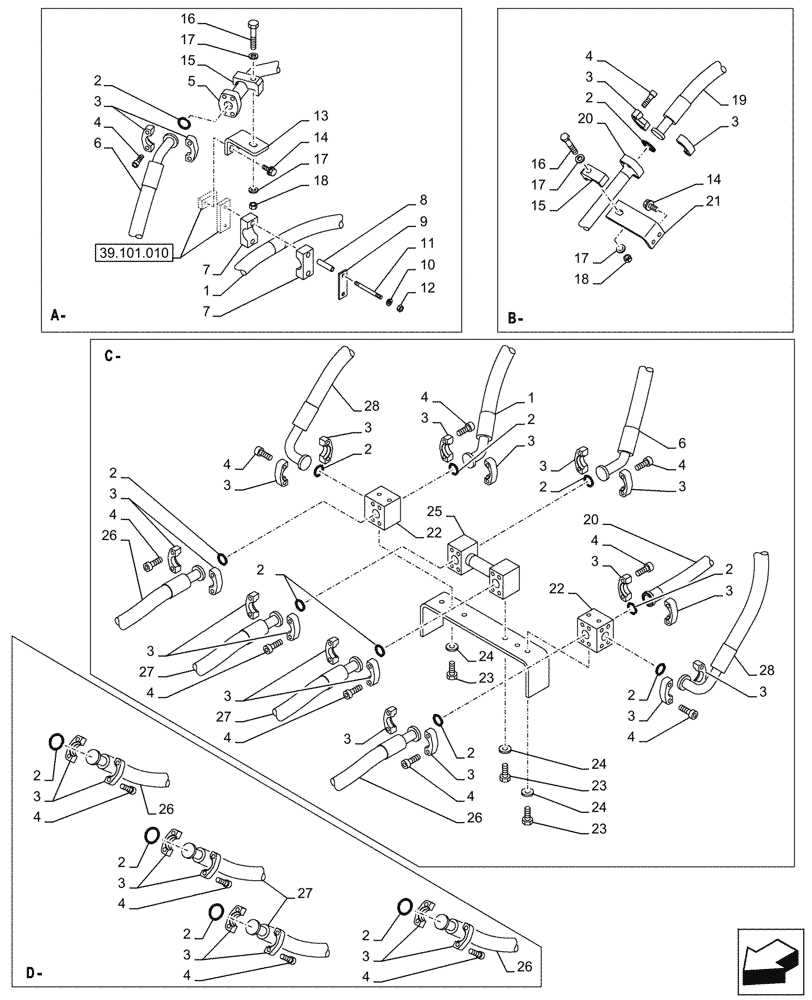

Запчасти Case CX750D RTC ME (35.736.020) - LIFT CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS

1

KWJ15240

HYDRAULIC HOSE

From Main Control Valve to Boom Cylinder

1шт.

2

153626A1

O-RING

15шт.

3

150124A1

FLANGE

28шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

56шт.

5

KWJ15260

PIPE

From Main Control Valve to Boom Cylinder

1шт.

6

KWJ15250

HYDRAULIC HOSE

From Main Control Valve to Boom Cylinder

1шт.

7

KUJ0035

HOSE CLAMP

2шт.

8

KUJ0036

SPACER

2шт.

9

KUJ0034

SHEET

1шт.

10

150409A1

WASHER

M12

2шт.

11

KUJ0398

STUD

2шт.

12

829-1310

NUT,M10, Cl 10

2шт.

13

KWJ15270

BRACKET

1шт.

14

166352A1

BOLT

M12 x 30mm

4шт.

15

KTV1209

CLAMP

2шт.

16

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

2шт.

17

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

18

829-1416

NUT,M16, Cl 10

2шт.

19

KWJ12280

HYDRAULIC HOSE

From Main Control Valve to Boom Cylinder

1шт.

20

KWJ15280

PIPE

From Main Control Valve to Boom Cylinder

1шт.

21

KWJ12300

BRACKET

1шт.

22

KWJ14330

MANIFOLD

2шт.

23

102R014Y030R

BOLT

6шт.

24

150418A1

WASHER

6шт.

25

KWJ10330

HYD TUBE,34.7 mm ID x 42.7 mm OD

From Main Control Valve to Boom Cylinder

1шт.

26

KWJ10290

HYDRAULIC HOSE,31.80 mm ID x 1190.00 mm

From Main Control Valve to Boom Cylinder

2шт.

27

KWJ10300

HYDRAULIC HOSE,31.80 mm ID x 1280.00 mm

From Main Control Valve to Boom Cylinder

2шт.

28

KWJ14340

HYDRAULIC HOSE

From Manifold RH Valve to Manifold LH

1шт.
