(35.360.360) - VAR - 461563 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC ME (35.360.360) - VAR - 461563 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

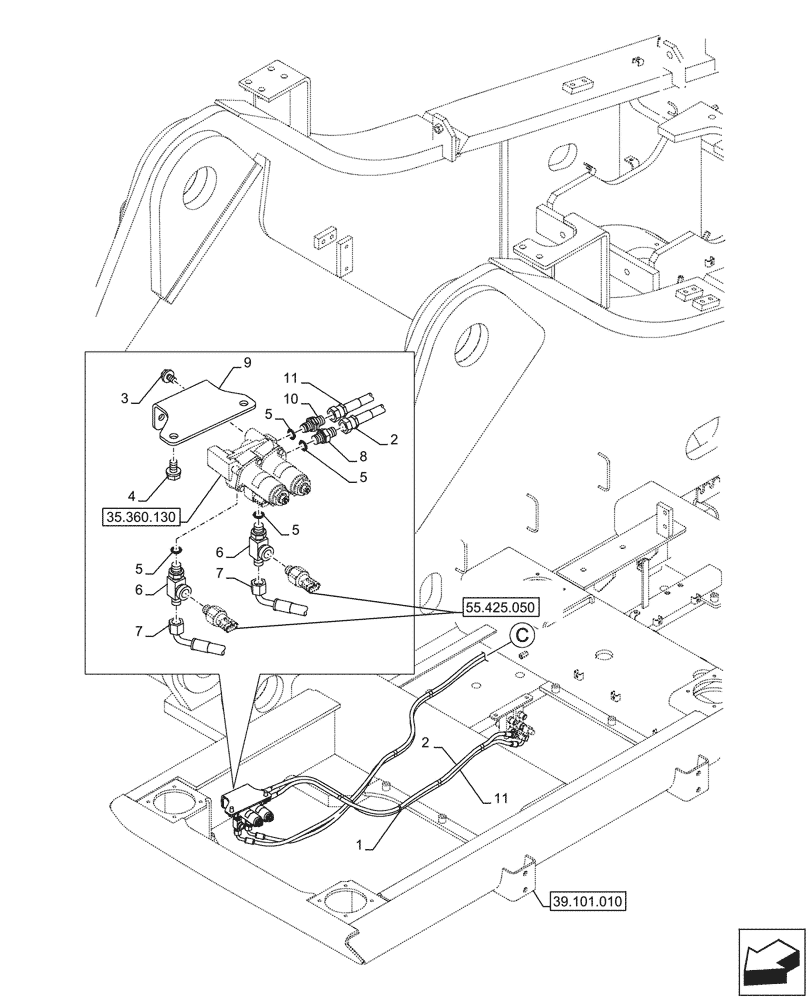

Схема запчастей Case CX750D RTC ME - (35.360.360) - VAR - 461563 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.130
5
5
1
6
2
2
4
6
9
3
7
5
8
11
7
10
11
5
39.101.010
55.425.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150496A1

MOUNTING CLIP

1шт.

2

KHJ2051

HOSE

From Valve Reducing to Manifold

1шт.

3

166345A1

BOLT

2шт.

4

166351A1

BOLT,Sems, M10 x 20mm

2шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

167666A1

FITTING

ASSY, Incl 5

2шт.

7

KHJ2164

HOSE

From Valve Reducing to Control Valve

1шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5

1шт.

9

KHJ28770

BRACKET

1шт.

10

161841A1

HYD CONNECTOR

ASSY, Incl 5

1шт.

11

KHJ2092

HOSE

From Valve Reducing to Manifold

1шт.
