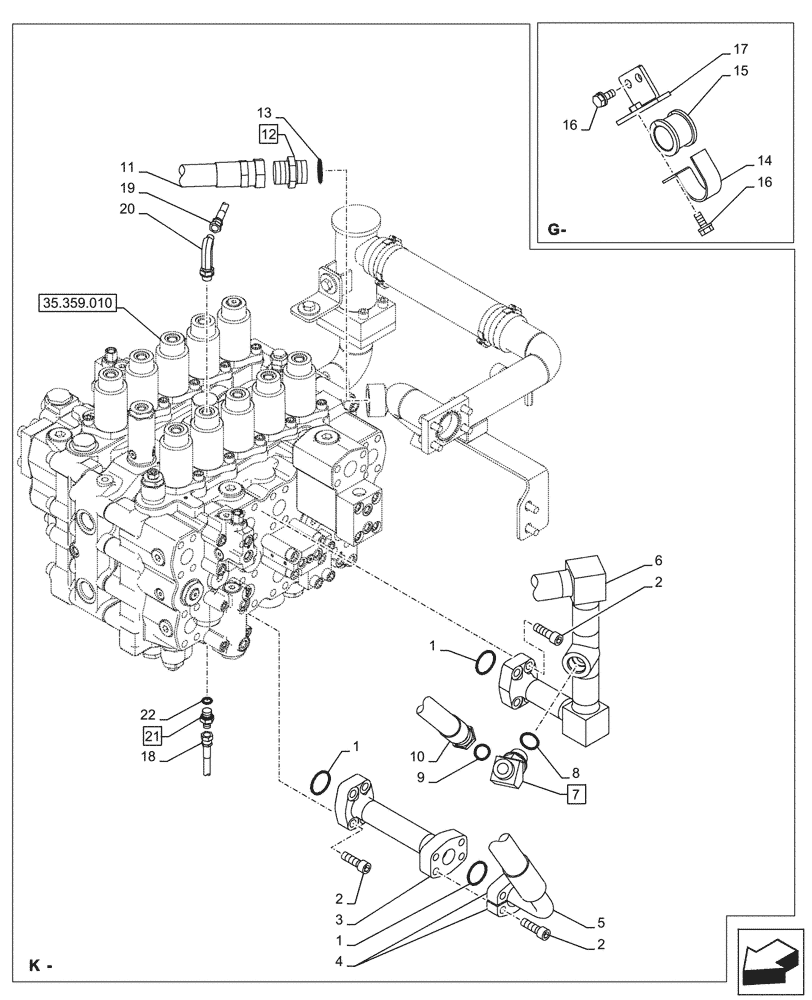

Запчасти Case CX750D RTC ME (35.360.340) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

153626A1

O-RING

3шт.

2

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

12шт.

3

KWJ13330

PIPE

1шт.

4

150124A1

FLANGE

2шт.

5

KWJ13340

HYDRAULIC HOSE

From Main Control Valve to Relief Valve

1шт.

6

KWJ13360

PIPE

1шт.

7

KHJ11370

ELBOW

ASSY, Incl 8

1шт.

8

152211A1

O-RING

1шт.

9

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

10

KWJ13390

HYDRAULIC HOSE

From Main Control Valve to Manifold

1шт.

11

KWJ13410

HYDRAULIC HOSE

From Main Control Valve to Manifold

1шт.

12

159047A1

ADAPTER

ASSY, Incl 13

1шт.

13

150583A1

O-RING

1шт.

14

KHJ17240

HOSE CLAMP

1шт.

15

KHJ2024

COLLAR

1шт.

16

166052A1

BOLT

3шт.

17

KWJ15400

BRACKET

1шт.

18

KHJ2060

HOSE

From Main Control Valve to Solenoid Valve

1шт.

19

KHJ11000

HYDRAULIC HOSE

From Main Control Valve to Solenoid Valve

1шт.

20

KHJ28880

ELBOW

1шт.

21

153378A1

ADAPTER

ASSY, Incl 22

1шт.

22

150031A1

O-RING,10mm ID x 24mm OD

1шт.
