(35.360.320) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC ME (35.360.320) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

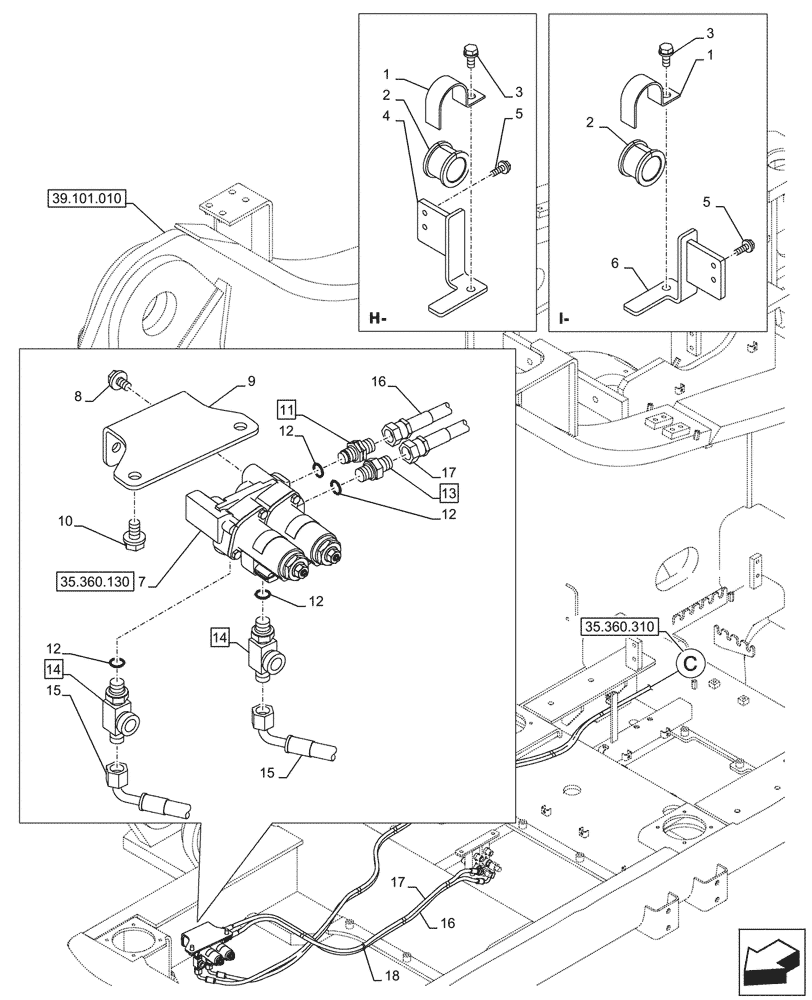

Схема запчастей Case CX750D RTC ME - (35.360.320) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.130
5
18
6
11
10
16
2
14
1
17
16
7
4
2
13
15
12
9
3
5
1
12
12
12
14
17
8
15
3
35.360.310
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ17240

HOSE CLAMP

2шт.

2

KHJ2024

COLLAR

2шт.

3

166052A1

BOLT

2шт.

4

KWJ13940

BRACKET

1шт.

5

167182A1

BOLT,Sems, M8 x 25mm

4шт.

6

KWJ13950

BRACKET

1шт.

7

MFJ71500

VALVE SECTION

ASSY

1шт.

8

166345A1

BOLT

2шт.

9

KHJ28770

BRACKET

1шт.

10

166351A1

BOLT,Sems, M10 x 20mm

2шт.

11

161841A1

HYD CONNECTOR

ASSY, Incl 12 (Qty 1)

1шт.

12

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 12 (Qty 1)

1шт.

14

167666A1

FITTING

ASSY, Incl 12 (Qty 1)

2шт.

15

KHJ2164

HOSE

From Main Control Valve to Solenoid Valve

2шт.

16

KHJ2092

HOSE

From Drain Block Valve to Solenoid Valve

1шт.

17

KHJ2051

HOSE

From Drain Block Valve to Solenoid Valve

1шт.

18

150496A1

MOUNTING CLIP

1шт.
