(35.360.310) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC ME (35.360.310) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

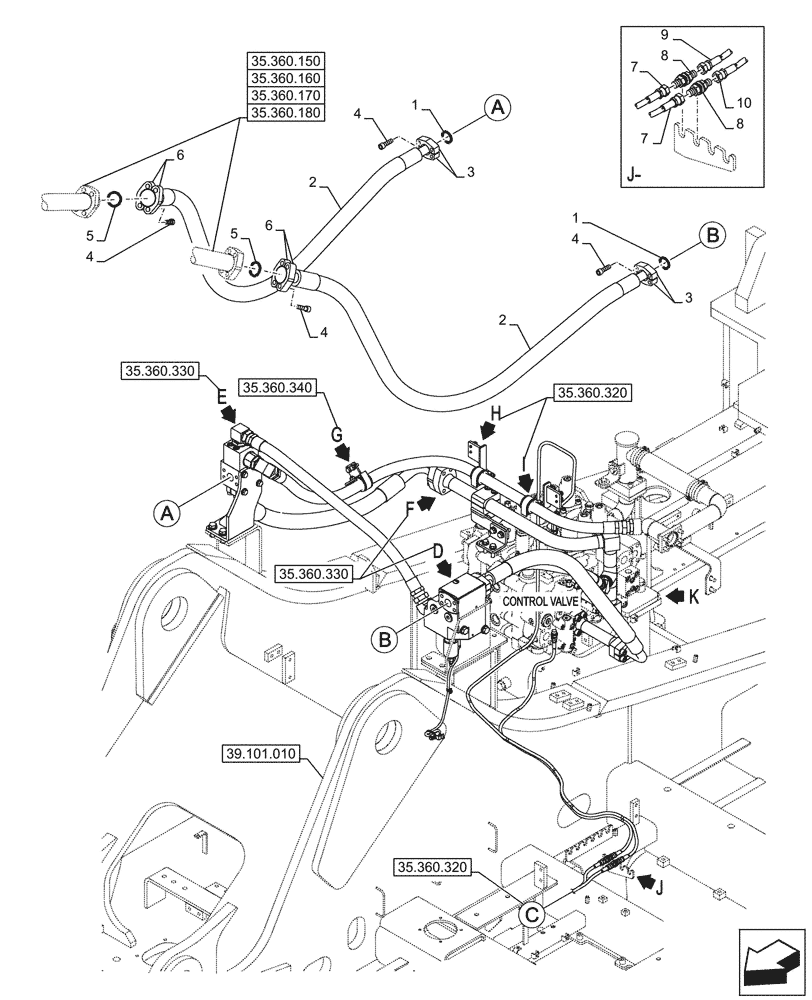

Схема запчастей Case CX750D RTC ME - (35.360.310) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.340
2
4
5
7
4
4
3
8
1
10
9
1
8
3
7
6
4
6
5
35.360.160
2
35.360.320
35.360.320
39.101.010
35.360.150
35.360.180
35.360.170
35.360.330
35.360.330
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

153626A1

O-RING

2шт.

2

KWJ0050

HOSE ASSY.,38.10 mm ID x 2250.00 mm

From Manifold to Stop Valve

2шт.

3

150124A1

FLANGE

2шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

16шт.

5

162484A1

O-RING

2шт.

6

KTJ0169

FLANGE

4шт.

7

KHJ2164

HOSE

From Main Control Valve to Solenoid Valve

2шт.

8

159481A1

ADAPTER

2шт.

9

KHJ2060

HOSE

From Main Control Valve to Solenoid Valve

1шт.

10

KHJ11000

HYDRAULIC HOSE

From Main Control Valve to Solenoid Valve

1шт.
