(35.360.290) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC ME (35.360.290) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

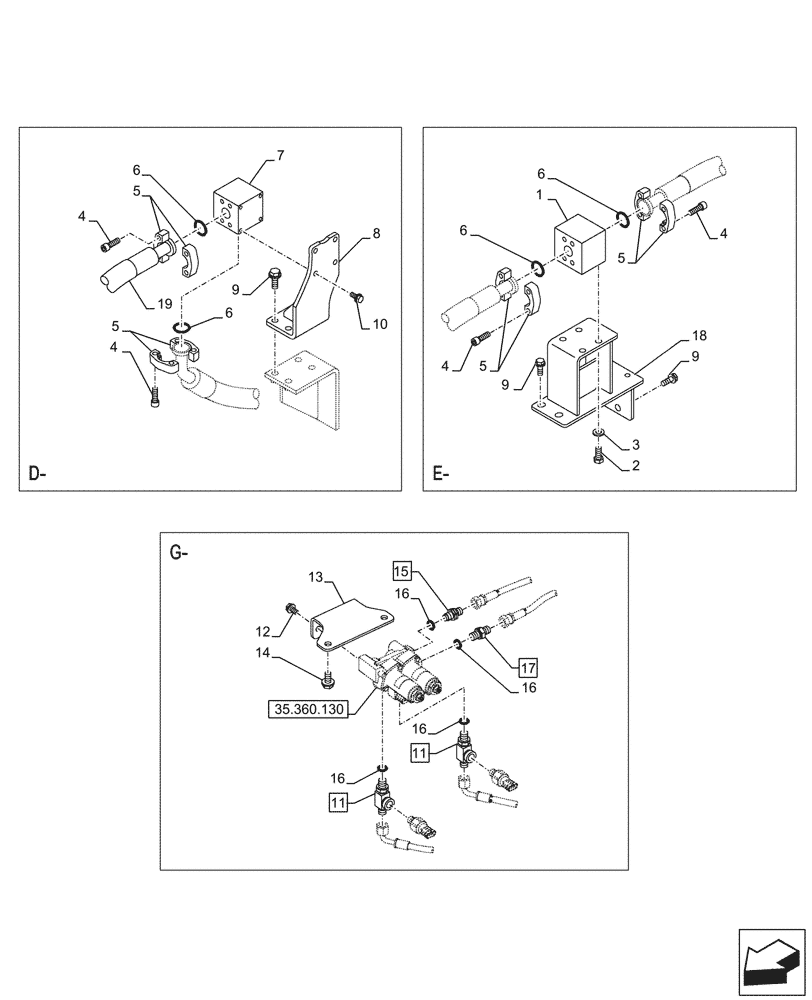

Схема запчастей Case CX750D RTC ME - (35.360.290) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.130
9
16
5
11
4
4
3
12
4
1
16
6
13
9
4
15
14
10
5
8
5
2
16
9
7
6
6
11
17
6
19
18
5
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ2830

MANIFOLD VALVE

1шт.

2

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

M16 x 35mm

4шт.

3

157548A1

WASHER

4шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

4шт.

5

150124A1

FLANGE

2шт.

6

153626A1

O-RING

1шт.

7

163436A1

MANIFOLD

1шт.

8

KWJ13970

BRACKET

1шт.

9

166348A1

BOLT

M16 x 45mm

8шт.

10

166352A1

BOLT

M12 x 30mm

4шт.

11

167666A1

FITTING

ASSY, Incl 16 (Qty 1)

2шт.

12

166345A1

BOLT

2шт.

13

KHJ28770

BRACKET

1шт.

14

166351A1

BOLT,Sems, M10 x 20mm

2шт.

15

161841A1

HYD CONNECTOR

ASSY, Incl 16 (Qty 1)

1шт.

16

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

17

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 16 (Qty 1)

1шт.

18

KWJ15450

BRACKET

1шт.

19

KWJ0050

HOSE ASSY.,38.10 mm ID x 2250.00 mm

1шт.
