(35.360.280) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC ME (35.360.280) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

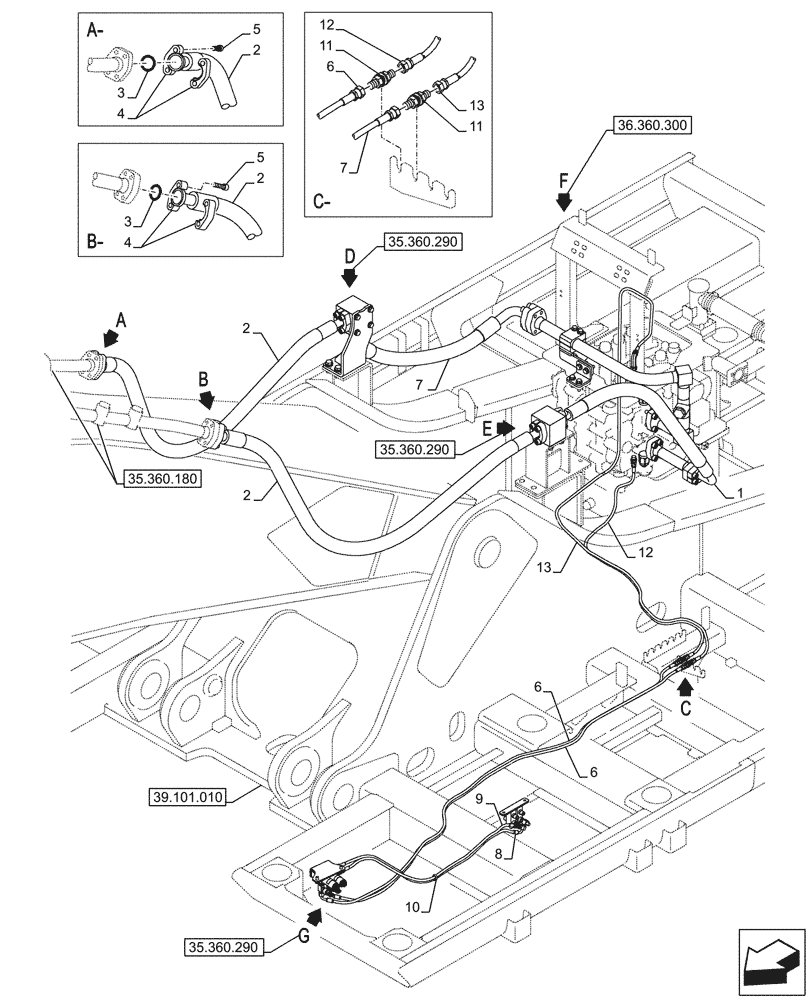

Схема запчастей Case CX750D RTC ME - (35.360.280) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.290
5
8
2
11
3
2
13
12
12
1
10
7
2
3
11
2
5
6
6
4
7
9
6
13
4
39.101.010
36.360.300
35.360.180
35.360.290
35.360.290
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWJ15640

HYDRAULIC HOSE

38mm ID x 1350mm

1шт.

2

KWJ0050

HOSE ASSY.,38.10 mm ID x 2250.00 mm

From Manifold to Boom line

2шт.

3

162484A1

O-RING

1шт.

4

KTJ0169

FLANGE

2шт.

5

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

4шт.

6

KHJ2164

HOSE

6mm ID x 2450mm

2шт.

7

KWJ13350

HYDRAULIC HOSE

1шт.

8

KHJ2092

HOSE

6mm ID x 1100mm

1шт.

9

KHJ2051

HOSE

6mm ID x 1050mm

1шт.

10

150496A1

MOUNTING CLIP

1шт.

11

159481A1

ADAPTER

2шт.

12

KHJ2060

HOSE

6mm ID x 1700mm

1шт.

13

KHJ11000

HYDRAULIC HOSE

6mm ID x 3250mm

1шт.
