(35.360.230) - VAR - 461865 - HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC ME (35.360.230) - VAR - 461865 - HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

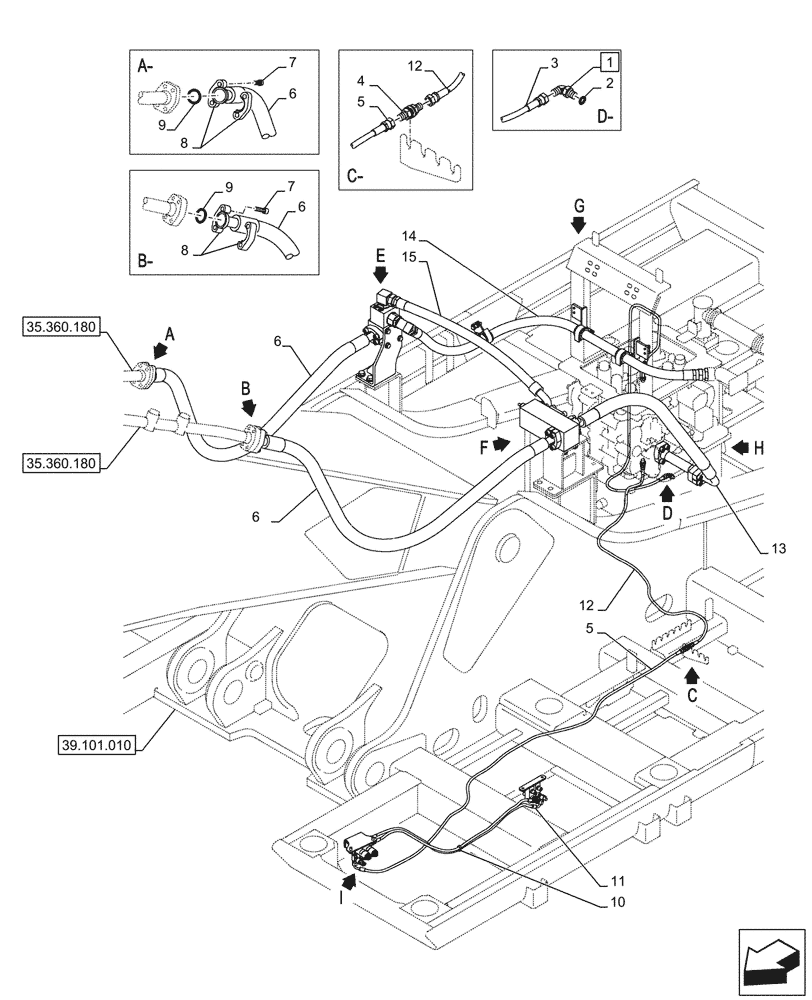

Схема запчастей Case CX750D RTC ME - (35.360.230) - VAR - 461865 - HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
39.101.010
5
4
12
6
8
14
6
13
7
3
5
9
10
15
2
7
1
6
9
6
12
11
8
35.360.180
35.360.180
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ28580

ELBOW

ASSY, Incl 2

1шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

90° Fitting, Incl in 1

1шт.

3

KHJ2143

HOSE

1шт.

4

159481A1

ADAPTER

1шт.

5

KHJ2164

HOSE

1шт.

6

KWJ0050

HOSE ASSY.,38.10 mm ID x 2250.00 mm

2шт.

7

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

8шт.

8

KTJ0169

FLANGE

4шт.

9

162484A1

O-RING

2шт.

10

150496A1

MOUNTING CLIP

1шт.

11

KHJ2051

HOSE

1шт.

12

KHJ2060

HOSE

1шт.

13

KWJ15640

HYDRAULIC HOSE

1шт.

14

KWJ13410

HYDRAULIC HOSE

1шт.

15

KWJ15650

HYDRAULIC HOSE

1шт.
