(35.360.170) - VAR - 461561, 461563, 461865, 461868, 461869 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW

Запчасти Case CX750D RTC ME (35.360.170) - VAR - 461561, 461563, 461865, 461868, 461869 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS

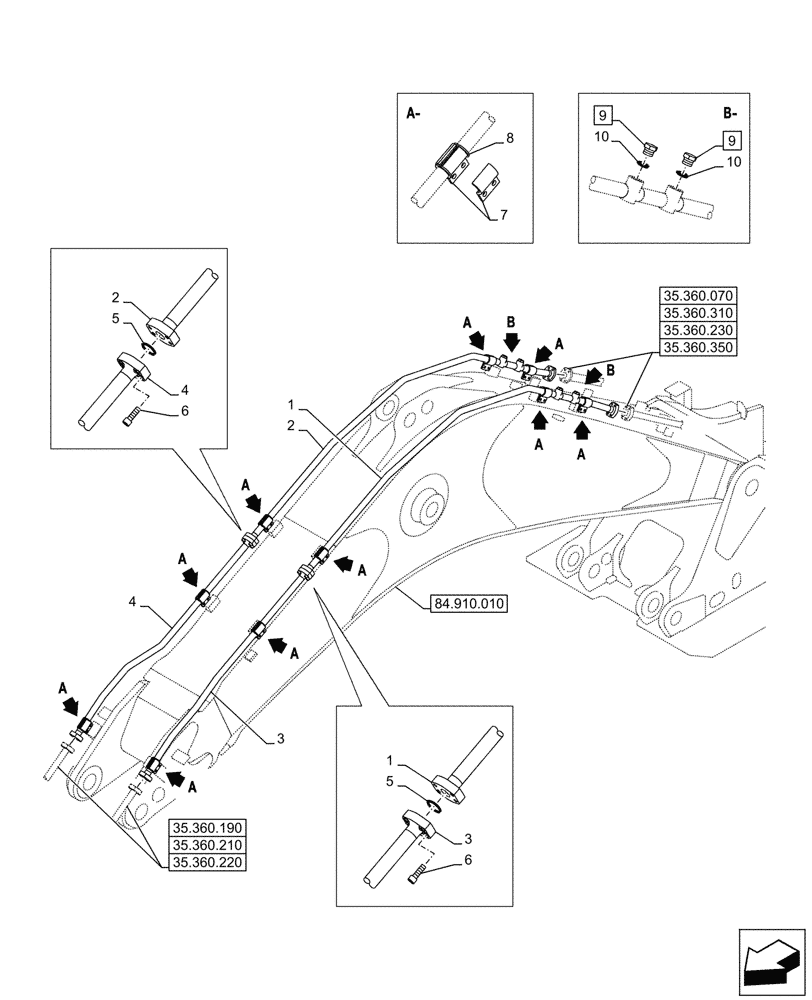

Схема запчастей Case CX750D RTC ME - (35.360.170) - VAR - 461561, 461563, 461865, 461868, 461869 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS
35.360.230
5
3
4
3
6
6
7
2
2
1
8
5
9
9
10
4
1
35.360.190
84.910.010
35.360.220
10
35.360.310
35.360.210
35.360.350
35.360.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWV10250

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

2

KWV10260

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

3

KWV10270

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

4

KWV10280

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

5

162484A1

O-RING

2шт.

6

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

8шт.

7

KWV0089

CLAMP

20шт.

8

KWV11560

GROMMET

10шт.

9

162659A1

PLUG

ASSY, Incl 10

4шт.

10

152211A1

O-RING

4шт.
