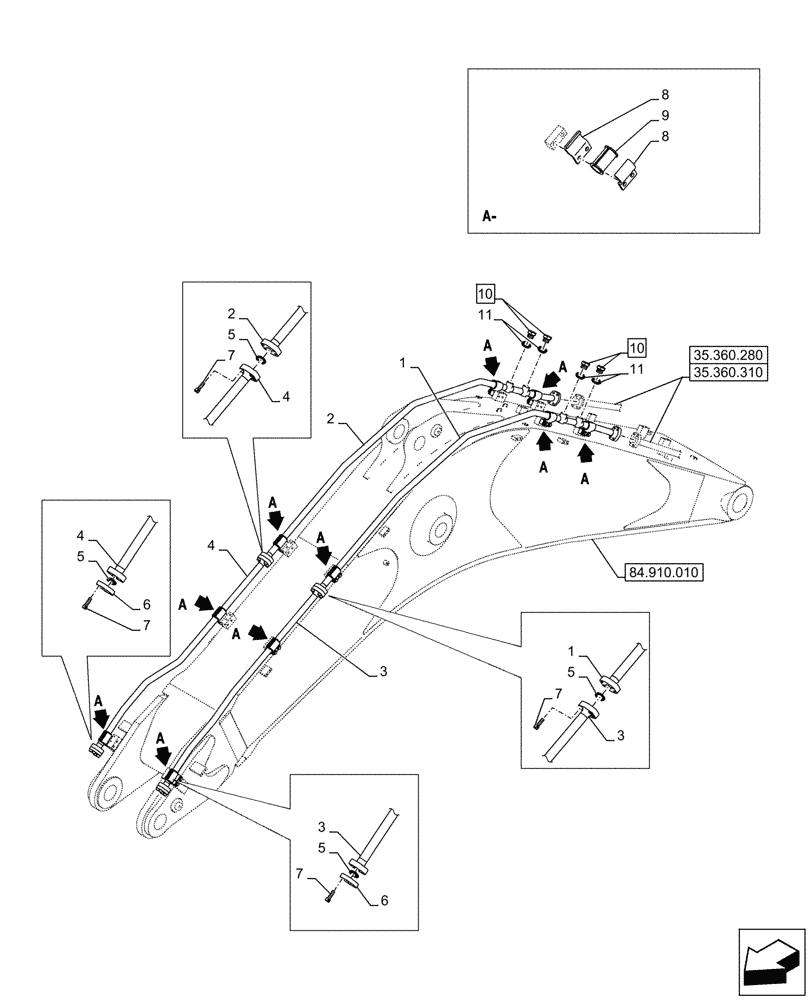

Запчасти Case CX750D RTC ME (35.360.150) - VAR - 461868, 461869, 461871 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KWV10250

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

2

KWV10260

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

3

KWV10270

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

4

KWV10280

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

5

162484A1

O-RING

4шт.

6

KUP0008

COUPLING FLANGE

2шт.

7

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

16шт.

8

KWV0089

CLAMP

20шт.

9

KWV11560

GROMMET

10шт.

10

162659A1

PLUG

ASSY, Incl 11

4шт.

11

152211A1

O-RING

4шт.
