(35.360.140) - VAR - 461557, 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, CONTROL

Запчасти Case CX750D RTC ME (35.360.140) - VAR - 461557, 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, CONTROL (35) - HYDRAULIC SYSTEMS

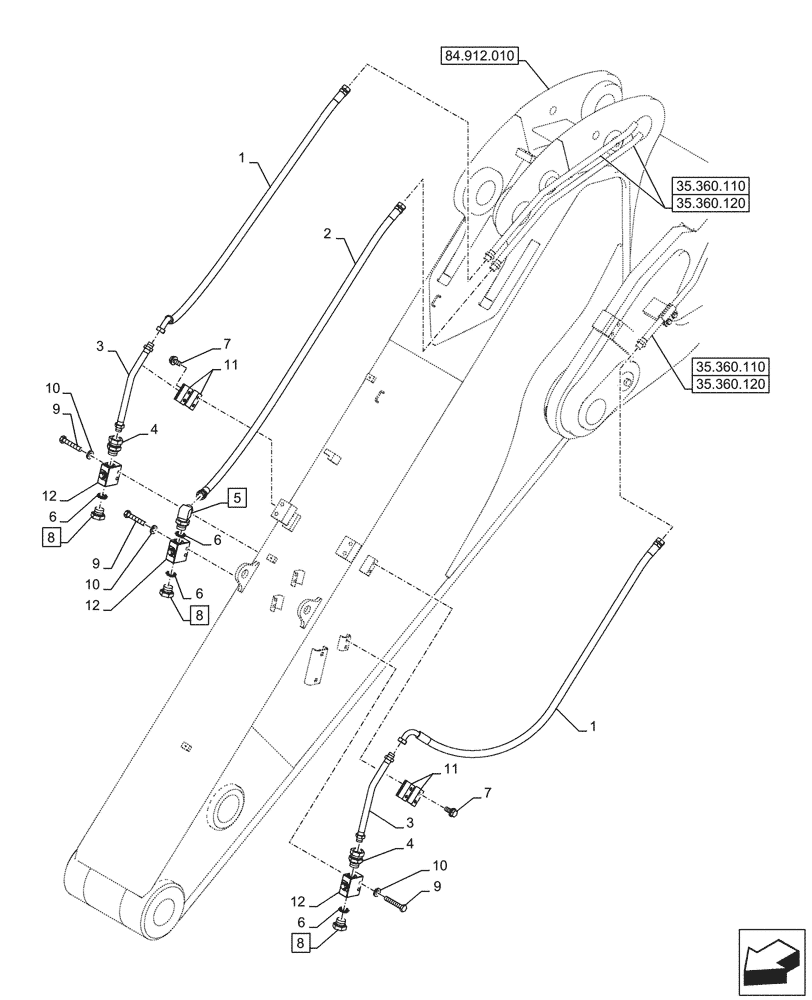

Схема запчастей Case CX750D RTC ME - (35.360.140) - VAR - 461557, 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, CONTROL (35) - HYDRAULIC SYSTEMS
35.360.120
2
3
1
12
11
6
5
8
9
7
9
1
6
6
11
10
10
7
4
8
4
10
12
9
6
8
12
3
84.912.010
35.360.110
35.360.110
35.360.120
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWV11820

HOSE ASSY.

2шт.

2

KWV13690

HYDRAULIC HOSE

1шт.

3

KWV10570

HYD TUBE

2шт.

4

167248A1

FITTING

2шт.

5

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, Incl 6

1шт.

6

150542A1

O-RING

4шт.

7

166352A1

BOLT

4шт.

8

152924A1

PLUG

ASSY, Incl 6

3шт.

9

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

6шт.

10

150811A1

WASHER

6шт.

11

KWV0085

CLAMP

4шт.

12

KHV10680

VALVE SECTION

3шт.
