(35.360.130) - VAR - 461865, 461868, 461869, 461871 - SOLENOID VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC ME (35.360.130) - VAR - 461865, 461868, 461869, 461871 - SOLENOID VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

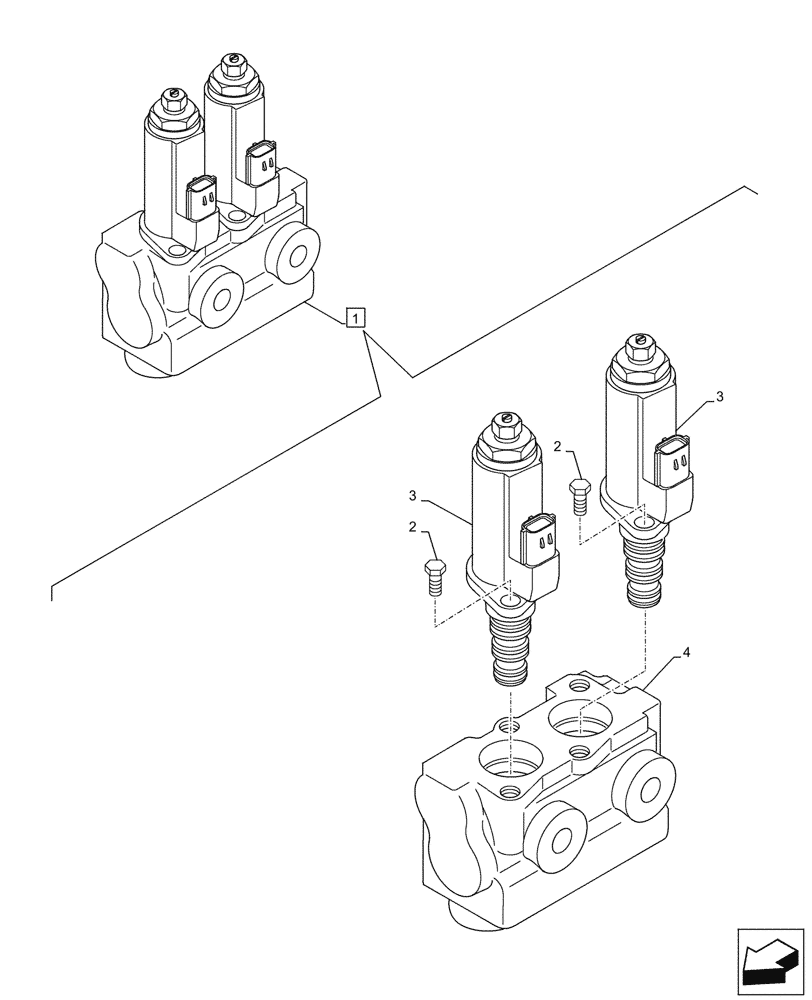

Схема запчастей Case CX750D RTC ME - (35.360.130) - VAR - 461865, 461868, 461869, 461871 - SOLENOID VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
1
2
2
3
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MFJ71500

VALVE SECTION

ASSY, Incl 2 - 4

1шт.

2

102R005Y012R

BOLT

M5 x 12mm

4шт.

3

LJ017960

VALVE

2шт.

4

LW005920

BODY

1шт.
