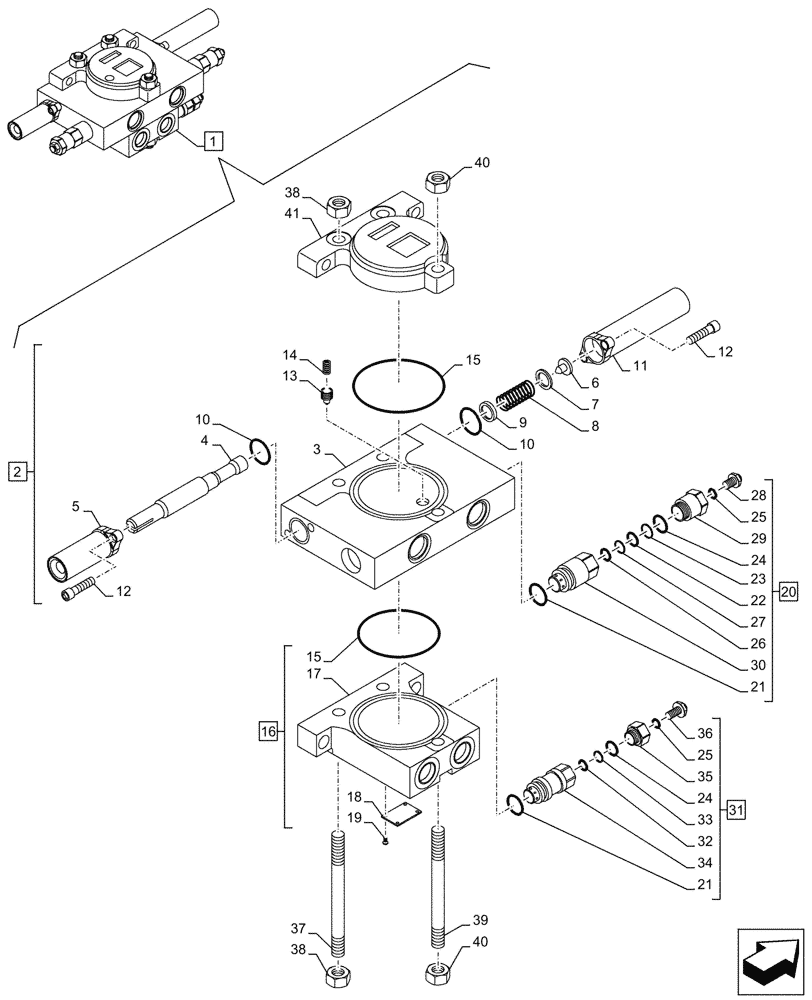

Запчасти Case CX750D RTC ME (35.360.050) - VAR - 461863 - BUCKET, VALVE, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

168709A1

VALVE SECTION

ASSY, Incl 2 - 41

1шт.

2

LJ00881

HYD VALVE SECTION

ASSY, Incl 3 - 14, 15 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Inlet Section Valve, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

5

LR00821

CAP

1шт.

6

LF00036

CAP

1шт.

7

163393A1

SPRING SEAT

1шт.

8

LG00411

COMPRESSION SPRING

1шт.

9

LR00823

VALVE SEAT

1шт.

10

LBC0058

O-RING

2шт.

11

LR00822

CAP

1шт.

12

LA00810

SPECIAL BOLT

M6 x 18mm

4шт.

13

TPC0004

VALVE POPPET

1шт.

14

TSC0004

SPRING

1шт.

15

LBQ5228

O-RING

2шт.

16

LNC0246

HYD VALVE SECTION

ASSY, Incl 15 (Qty 1), 17 - 19

1шт.

17

LT00115

HOUSING

1шт.

18

NSS

NOT SOLD SEPARAT

Nameplate, Incl in 16

1шт.

19

NSS

NOT SOLD SEPARAT

Screw, Incl in 16

4шт.

20

167387A1

VALVE, PRESSURE RELI

ASSY, Incl 21 (Qty 2), 22, 23, 24 (Qty 2), 25 (Qty 2), 26 - 30

2шт.

21

155222A1

O-RING

3шт.

22

167362A1

O-RING

2шт.

23

167356A1

BACK-UP RING

2шт.

24

155221A1

O-RING

3шт.

25

154463A1

O-RING

3шт.

26

163323A1

O-RING

2шт.

27

164575A1

BACK-UP RING

2шт.

28

NSS

NOT SOLD SEPARAT

Bolt, Incl in 20

2шт.

29

NSS

NOT SOLD SEPARAT

Body, Incl in 20

2шт.

30

NSS

NOT SOLD SEPARAT

Body, Incl in 20

2шт.

31

LNC0134

VALVE, PRESSURE RELI

ASSY, Incl 21 (Qty 1), 24 (Qty 1), 25 (Qty 1), 32 - 36

1шт.

32

154462A1

O-RING

1шт.

33

153952A1

BACK-UP RING

1шт.

34

NSS

NOT SOLD SEPARAT

Body, Incl in 31

2шт.

35

NSS

NOT SOLD SEPARAT

Body, Incl in 31

2шт.

36

NSS

NOT SOLD SEPARAT

Bolt, Incl in 31

2шт.

37

LUC0079

ROD,THREADED

2шт.

38

TUC0006

SPECIAL NUT

4шт.

39

LUC0083

THREADED ROD

1шт.

40

TUC0008

SPECIAL NUT

2шт.

41

LNC0015

HYD VALVE SECTION

1шт.
