(35.360.040) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC ME (35.360.040) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

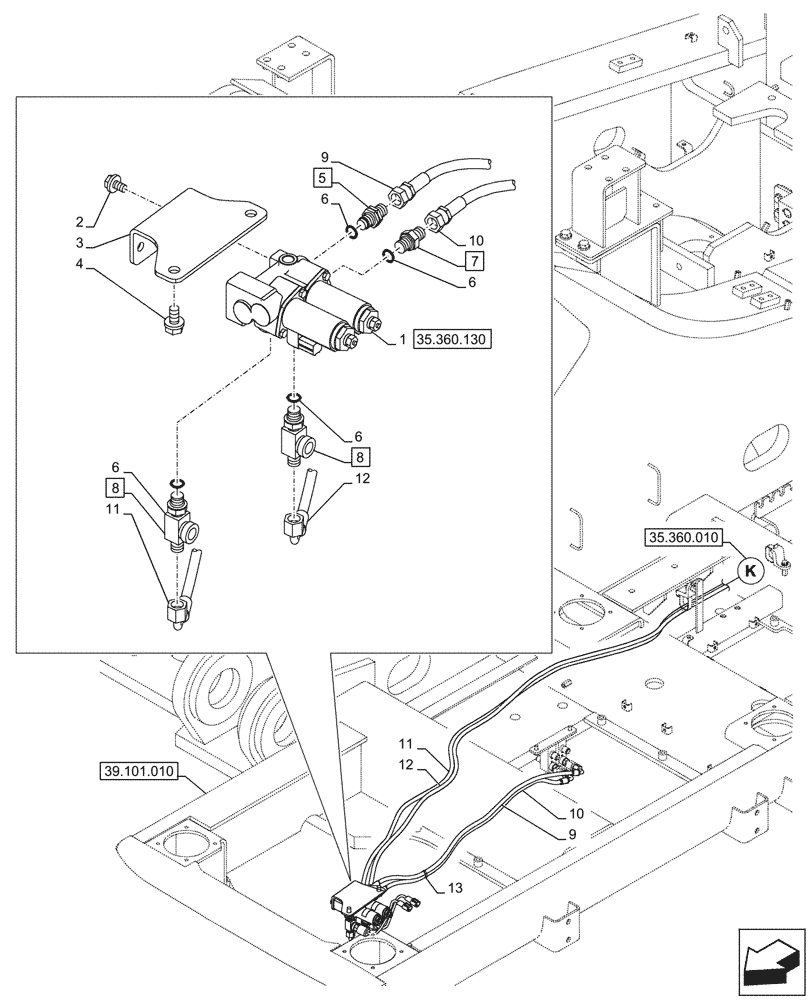

Схема запчастей Case CX750D RTC ME - (35.360.040) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.130
3
10
9
6
12
5
4
12
13
9
6
7
8
6
11
2
1
6
11
10
8
39.101.010
35.360.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MFJ71500

VALVE SECTION

ASSY

1шт.

2

166351A1

BOLT,Sems, M10 x 20mm

2шт.

3

KHJ28770

BRACKET

1шт.

4

166345A1

BOLT

2шт.

5

161841A1

HYD CONNECTOR

ASSY, Incl 6 (Qty 1)

1шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 6 (Qty 1)

1шт.

8

167666A1

FITTING

ASSY, Incl 6 (Qty 1)

2шт.

9

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

From Solenoid Valve to Drain Block Valve

1шт.

10

KHJ2088

HOSE

From Solenoid Valve to Drain Block Valve

1шт.

11

KHJ2599

HOSE

From Solenoid Valve to Manifold

1шт.

12

KHJ2197

HOSE

From Solenoid Valve to Manifold

1шт.

13

150496A1

MOUNTING CLIP

1шт.
