(35.360.030) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC ME (35.360.030) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

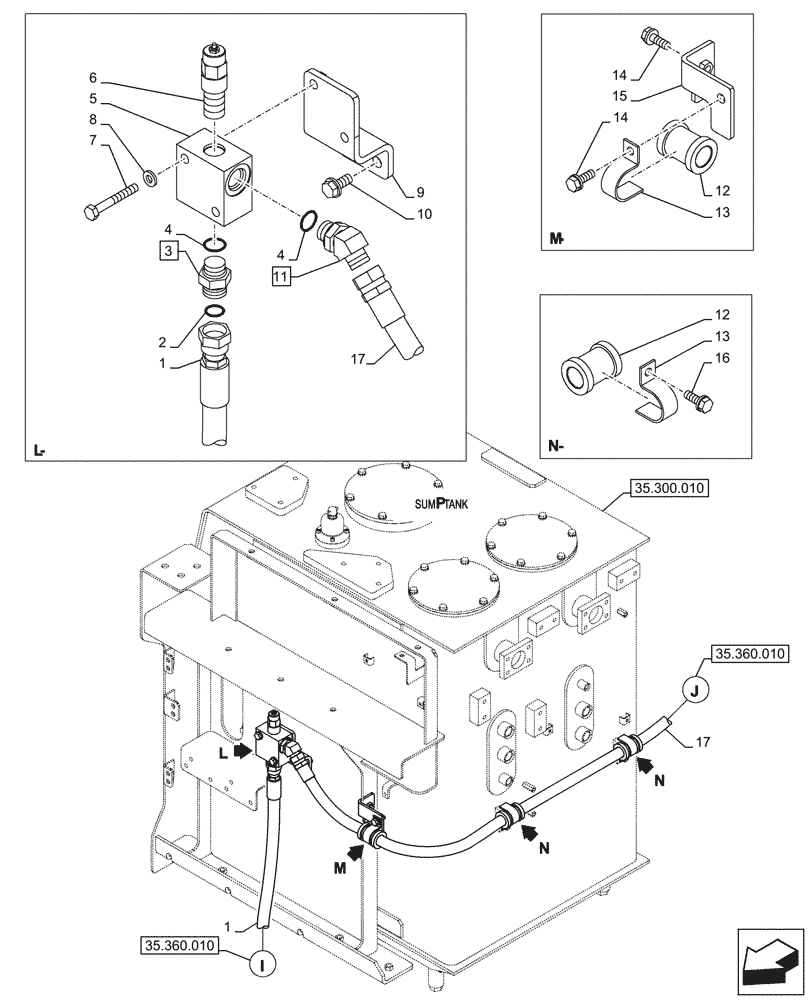

Схема запчастей Case CX750D RTC ME - (35.360.030) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.010
4
14
1
2
15
9
5
3
17
14
7
1
12
11
13
8
16
6
17
13
12
10
4
35.300.010
35.360.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWJ15830

From Valve Holding to Manifold

HYDRAULIC HOSE

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

3

KHJ1348

ADAPTER

ASSY, Incl 4 (Qty 1)

1шт.

4

150542A1

O-RING

2шт.

5

KWJ10880

VALVE SECTION

1шт.

6

KTJ2448

VALVE SECTION

1шт.

7

102R010Y075R

BOLT

2шт.

8

150409A1

WASHER

2шт.

9

KWJ15820

BRACKET

1шт.

10

166352A1

BOLT

2шт.

11

157586A1

ELBOW

ASSY, Incl 4 (Qty 1)

1шт.

12

KHJ2023

HOSE CLAMP

3шт.

13

KHJ2025

CLAMP

3шт.

14

166347A1

BOLT,Sems, M10 x 30mm

3шт.

15

KWJ13640

BRACKET

1шт.

16

166351A1

BOLT,Sems, M10 x 20mm

2шт.

17

KWJ13700

HYDRAULIC HOSE

From Valve Blade Control to Manifold

1шт.
