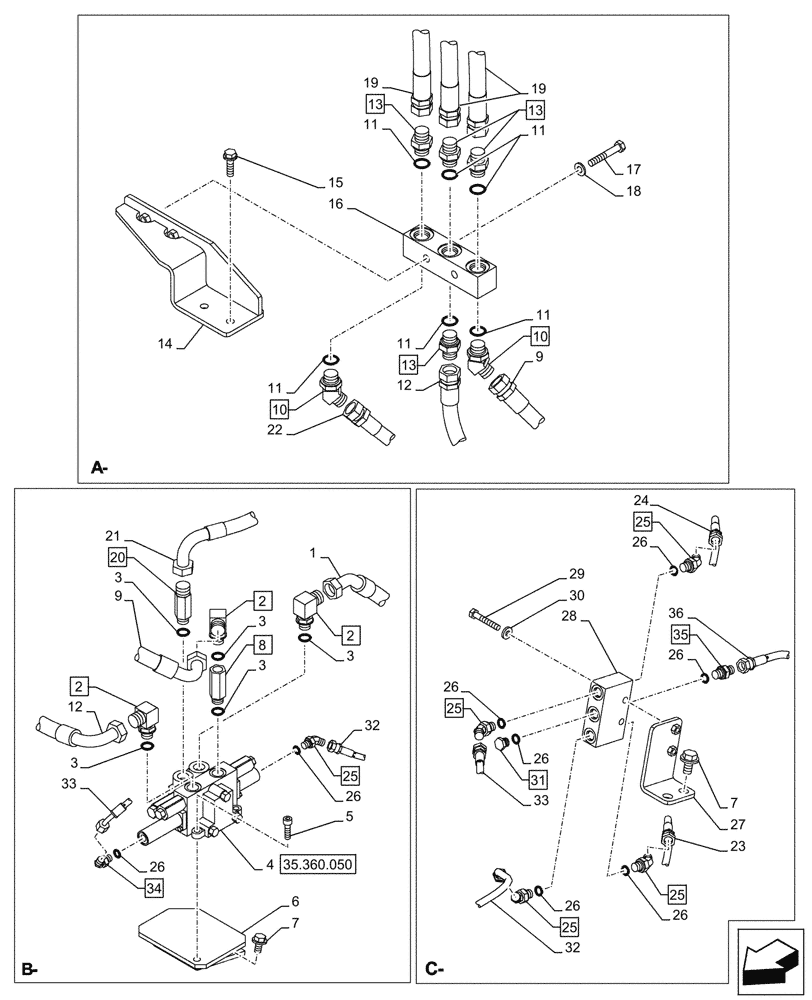

Запчасти Case CX750D RTC ME (35.360.020) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KWJ13700

HYDRAULIC HOSE

From Valve Blade Control to Manifold

1шт.

2

168609A1

ELBOW

ASSY, Incl 3 (Qty 1)

3шт.

3

150539A1

O-RING

5шт.

4

168709A1

VALVE SECTION

ASSY

1шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

3шт.

6

KWJ15000

BRACKET

1шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

8

KHJ1070

STUD

ASSY, Incl 3 (Qty 1)

1шт.

9

KWJ15020

HYDRAULIC HOSE

From Valve Blade Control to Manifold

1шт.

10

157586A1

ELBOW

ASSY, Incl 11 (Qty 1)

2шт.

11

150542A1

O-RING

6шт.

12

KWJ10710

HOSE ASSY.

From Valve Blade Control to Manifold

1шт.

13

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 11 (Qty 1)

4шт.

14

KWJ15030

BRACKET

1шт.

15

105R012Y045R

BOLT

2шт.

16

KWJ13670

MANIFOLD

1шт.

17

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

2шт.

18

157547A1

SPECIAL WASHER

2шт.

19

KWJ15040

HYDRAULIC HOSE

From Manifold to Stop Valve

3шт.

20

158759A1

HYD CONNECTOR

ASSY, Incl 3 (Qty 1)

1шт.

21

KAJ5027

HYDRAULIC HOSE,19.05 mm ID x 900.00 mm

From Valve Blade Control to Oil Tank

1шт.

22

KWJ15010

HYDRAULIC HOSE

From Manifold to Oil Tank

1шт.

23

KHJ2059

HOSE

From Solenoid Valve to Manifold

1шт.

24

KHJ2062

HOSE

From Solenoid Valve to Manifold

1шт.

25

KHJ28630

ELBOW

ASSY, Incl 26 (Qty 1)

5шт.

26

150960A1

O-RING,10.8mm ID x 2.4mm Width

8шт.

27

KWJ13620

BRACKET

1шт.

28

KHJ17110

VALVE

1шт.

29

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

30

153081A1

WASHER

2шт.

31

159002A1

PLUG

ASSY, Incl 26 (Qty 1)

1шт.

32

KHJ2246

HOSE

From Valve Blade Control to Manifold

1шт.

33

KHJ20490

HOSE

From Valve Blade Control to Manifold

1шт.

34

KHJ28580

ELBOW

ASSY, Incl 26 (Qty 1)

1шт.

35

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 26 (Qty 1)

1шт.

36

KHJ2192

HOSE

From Valve Holding to Manifold

1шт.
