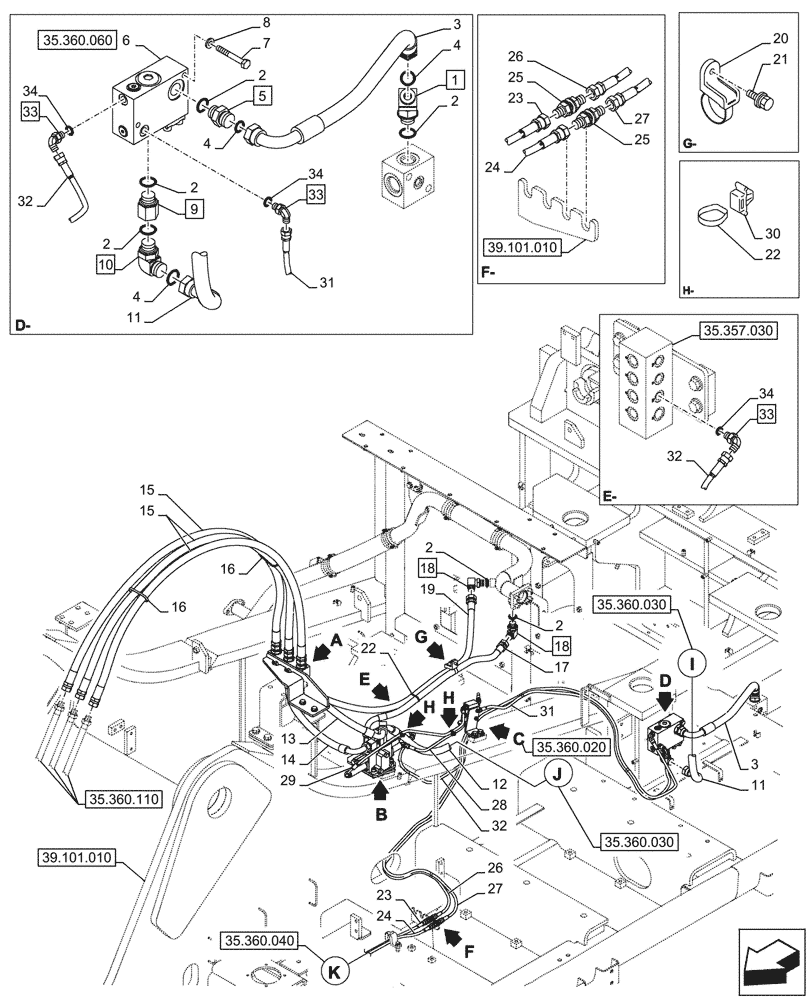

Запчасти Case CX750D RTC ME (35.360.010) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ12000

ELBOW

ASSY, Incl 2 (Qty 1)

1шт.

2

150542A1

O-RING

6шт.

3

KWJ13680

HYDRAULIC HOSE

From Valve Holding to Manifold

1шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

5

KHJ1348

ADAPTER

ASSY, Incl 2 (Qty 1)

1шт.

6

KHJ1473

VALVE

1шт.

7

102R010Y075R

BOLT

2шт.

8

150409A1

WASHER

2шт.

9

159198A1

ADAPTER

ASSY, Incl 2 (Qty 1)

1шт.

10

KHJ1804

ELBOW

ASSY, Incl 2 (Qty 1)

1шт.

11

KWJ15830

From Valve Holding to Manifold

HYDRAULIC HOSE

1шт.

12

KWJ13700

HYDRAULIC HOSE

From Valve Blade Control to Manifold

1шт.

13

KWJ15020

HYDRAULIC HOSE

From Valve Blade Control to Manifold

1шт.

14

KWJ10710

HOSE ASSY.

From Valve Blade Control to Manifold

1шт.

15

KWJ15040

HYDRAULIC HOSE

From Manifold to Stop Valve

3шт.

16

150071A1

MOUNTING CLIP

2шт.

17

KAJ5027

HYDRAULIC HOSE,19.05 mm ID x 900.00 mm

From Valve Blade Control to Oil Tank

1шт.

18

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, Incl 2 (Qty 1)

2шт.

19

KWJ15010

HYDRAULIC HOSE

From Manifold to Oil Tank

1шт.

20

KHR2581

CLAMP

1шт.

21

KHJ1215

BOLT,Spcl

1шт.

22

150496A1

MOUNTING CLIP

3шт.

23

KHJ2599

HOSE

From Solenoid Valve to Manifold

1шт.

24

KHJ2197

HOSE

From Solenoid Valve to Manifold

1шт.

25

159481A1

ADAPTER

2шт.

26

KHJ2059

HOSE

From Solenoid Valve to Manifold

1шт.

27

KHJ2062

HOSE

From Solenoid Valve to Manifold

1шт.

28

KHJ2246

HOSE

From Valve Blade Control to Manifold

1шт.

29

KHJ20490

HOSE

From Valve Blade Control to Manifold

1шт.

30

KHR10220

MOUNTING CLIP

2шт.

31

KHJ2192

HOSE

From Valve Holding to Manifold

1шт.

32

KHJ2068

HOSE

From Valve Blade Control to Valve Holding

1шт.

33

KHJ28580

ELBOW

ASSY, Incl 34

3шт.

34

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.
