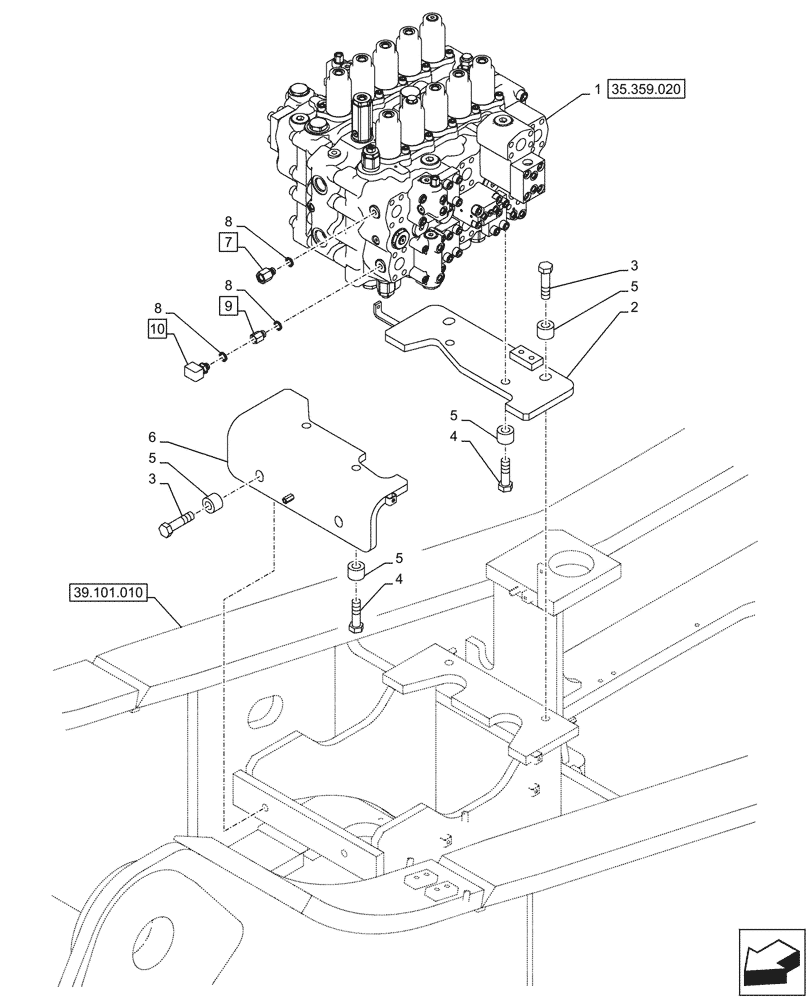

Запчасти Case CX750D RTC ME (35.359.010) - CONTROL VALVE, MOUNTING, BRACKET (35) - HYDRAULIC SYSTEMS

1

KWJ12091

CONTROL VALVE

ASSY

1шт.

2

KWJ13180

BRACKET

1шт.

3

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

4

102R020Y070R

BOLT

4шт.

5

166654A1

SPACER

8шт.

6

KWJ13310

BRACKET

1шт.

7

KHJ18190

STUD

ASSY, G3/8" x M18, Incl 11 (Qty 1)

1шт.

8

150031A1

O-RING,10mm ID x 24mm OD

3шт.

9

KHJ13790

STUD

ASSY, G3/8" x G3/8", Incl 11 (Qty 1)

1шт.

10

KHJ18300

ELBOW

ASSY, Incl 11 (Qty 1)

1шт.
