(35.357.030) - PILOT VALVE, CONTROL VALVE LINE

Запчасти Case CX750D RTC ME (35.357.030) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

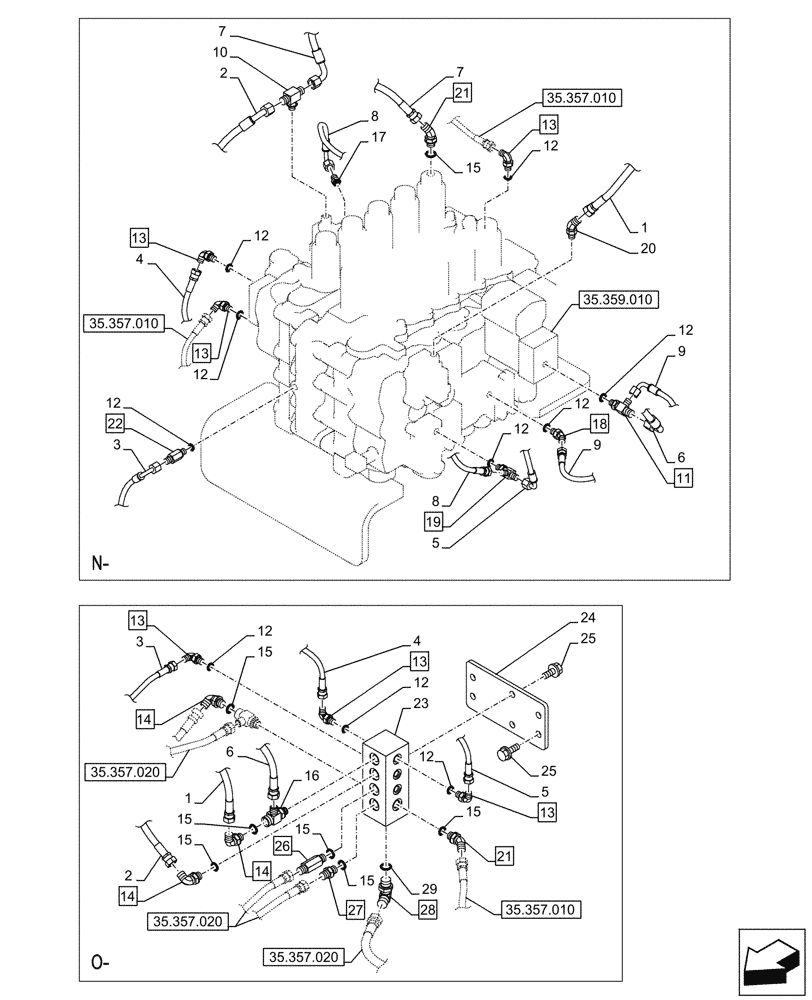

Схема запчастей Case CX750D RTC ME - (35.357.030) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
35.357.010
26
10
22
5
13
13
3
12
12
4
7
1
15
15
28
13
24
7
12
27
9
12
8
14
9
13
13
14
3
6
12
15
21
25
17
12
25
13
2
12
14
21
29
12
12
1
6
2
16
23
4
11
5
19
15
20
18
15
15
8
12
15
35.357.020
35.357.020
35.357.020
35.359.010
35.357.010
35.357.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2383

HOSE

9mm ID x 2350mm

1шт.

2

KHJ37840

HOSE

6mm ID x 1100mm

1шт.

3

KHJ2093

HOSE

6mm ID x 1150mm

1шт.

4

KHJ19260

HOSE

6mm ID x 800mm

1шт.

5

KHJ2440

HOSE

6mm ID x 2600mm

1шт.

6

KHJ37810

HOSE

1шт.

7

KHJ25490

HYDRAULIC HOSE

9mm ID x 400mm

1шт.

8

KHJ37800

HOSE

6mm ID x 870mm

1шт.

9

KHJ2180

HOSE,6.3mm ID x 500mm L

6mm ID x 500mm

1шт.

10

KMJ2291

TEE

1шт.

11

KHJ1642

TEE

ASSY, Incl 12

1шт.

12

150960A1

O-RING,10.8mm ID x 2.4mm Width

9шт.

13

KHJ28580

ELBOW

ASSY, Incl 12

6шт.

14

KHJ28590

ELBOW

ASSY, Incl 15

2шт.

15

150031A1

O-RING,10mm ID x 24mm OD

7шт.

16

KHJ31880

TEE

1шт.

17

168776A1

ADAPTER

1шт.

18

KHJ28630

ELBOW

ASSY, Incl 12

1шт.

19

159497A1

TEE

ASSY, Incl 12

1шт.

20

KHJ28750

ELBOW

1шт.

21

KHJ28640

ELBOW

ASSY, Incl 15

1шт.

22

162554A1

FITTING

ASSY, Incl 12

1шт.

23

KUJ0321

MANIFOLD VALVE

1шт.

24

KWJ13250

BRACKET

1шт.

25

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

26

KAJ2351

FITTING

ASSY, Incl 15

1шт.

27

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 15

1шт.

28

KHJ28600

ELBOW

ASSY, Incl 29

1шт.

29

150539A1

O-RING

1шт.
