(35.357.020) - PILOT VALVE, CONTROL VALVE LINE

Запчасти Case CX750D RTC ME (35.357.020) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

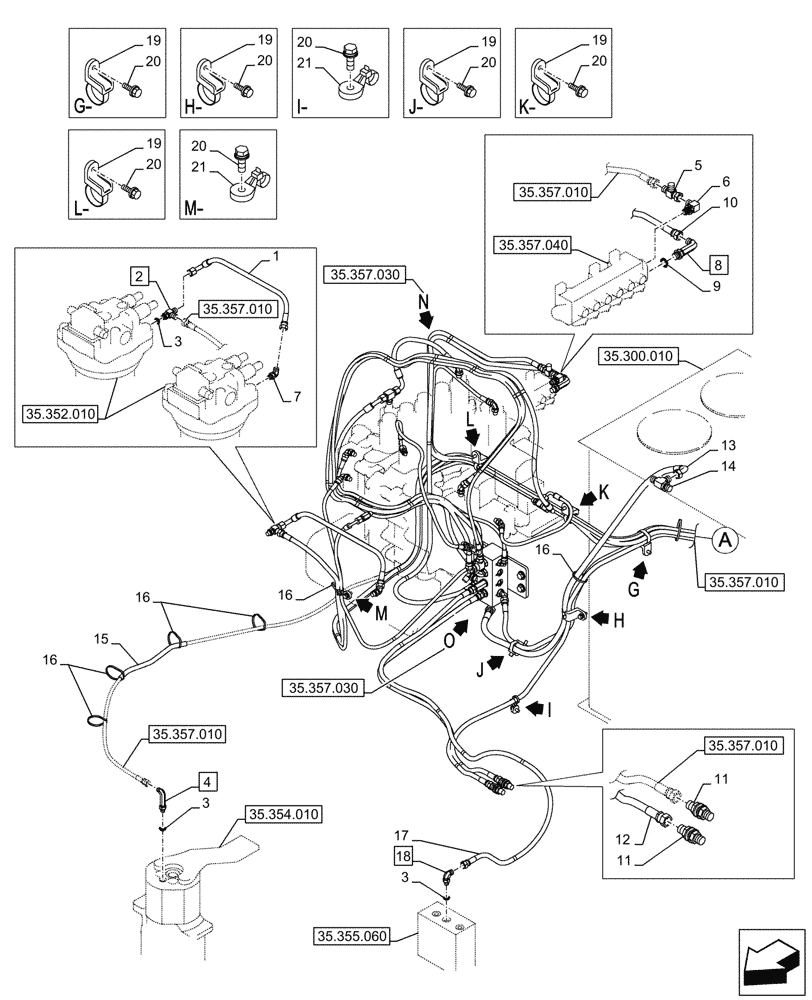

Схема запчастей Case CX750D RTC ME - (35.357.020) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
35.357.030
20
10
11
19
16
12
20
15
19
9
3
18
8
16
3
20
19
11
1
17
6
4
19
7
14
21
16
3
19
20
2
16
20
20
20
5
13
21
35.352.010
35.300.010
35.354.010
35.357.010
35.357.010
35.357.010
35.357.010
35.357.010
35.355.060
35.357.040
35.357.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2148

HOSE

9mm ID x 550mm

1шт.

2

162827A1

TEE

ASSY, Incl 3

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

4

KHJ28810

ELBOW

ASSY, Incl 3

1шт.

5

KHJ2234

TEE

1шт.

6

KHJ29610

ELBOW

1шт.

7

KHJ28750

ELBOW

1шт.

8

KHJ28820

ELBOW

ASSY, Incl 9

1шт.

9

150031A1

O-RING,10mm ID x 24mm OD

1шт.

10

KHJ17580

HOSE

9mm ID x 1900mm, from Reducing Valve to Manifold

1шт.

11

162826A1

ADAPTER

2шт.

12

KHJ15490

HYDRAULIC HOSE

9mm ID x 1350mm, from Manifold to Adapter

1шт.

13

KWJ13320

HYDRAULIC HOSE

1шт.

14

KHJ1529

FITTING

1шт.

15

152660A1

PLASTIC-RUBBER TUBE

1шт.

16

150496A1

MOUNTING CLIP

7шт.

17

KHJ2308

HOSE

9mm ID x 2150mm, from Cushion Valve to Manifold

1шт.

18

KHJ28710

ELBOW

ASSY, Incl 3

1шт.

19

KHR2581

CLAMP

5шт.

20

KHJ1215

BOLT,Spcl

M8 x 25mm

7шт.

21

KHR2584

CLAMP

2шт.
