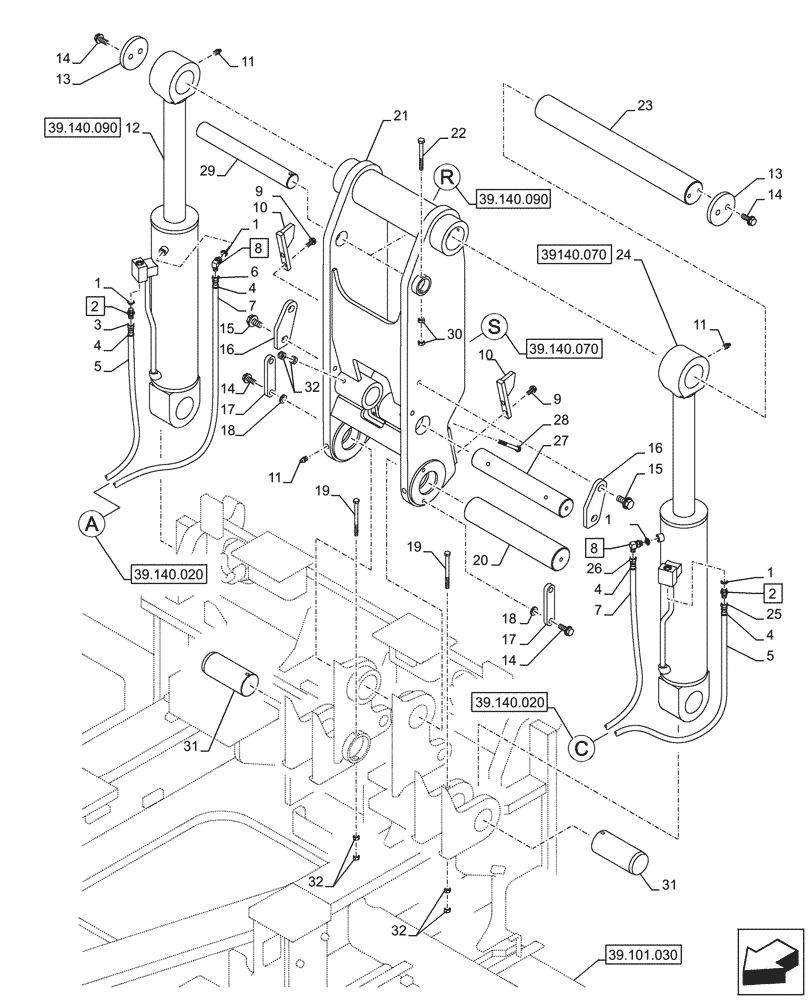

Запчасти Case CX750D RTC (39.140.060) - VAR - 481263 - CYLINDER, HYDRAULIC, COUNTERWEIGHT (39) - FRAMES AND BALLASTING

1

150031A1

O-RING,10mm ID x 24mm OD

4шт.

2

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 1

2шт.

3

KHJ35720

HYDRAULIC HOSE

1шт.

4

150496A1

MOUNTING CLIP

4шт.

5

KRH12830

FLEXIBLE SHEATH

From Manifold to Cylinder

2шт.

6

ADV11490

HYDRAULIC HOSE

1шт.

7

157769A1

PLASTIC-RUBBER TUBE

From Manifold to Cylinder

2шт.

8

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

ASSY, Incl 1

2шт.

9

166352A1

BOLT

4шт.

10

KWB12150

PLATE

2шт.

11

153630A1

LUBE NIPPLE

4шт.

12

KUB0154

HYDRAULIC CYLINDER

1шт.

13

KUB0168

PLATE

2шт.

14

166348A1

BOLT

4шт.

15

105R020Y050R

BOLT

4шт.

16

KUB0163

PLATE

2шт.

17

KUB0175

PLATE

2шт.

18

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

19

102R012Y150R

BOLT

2шт.

20

KUB0173

PIN

1шт.

21

KUB0157

ARM

1шт.

22

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

23

KUB0167

PIN

1шт.

24

KUB0155

HYDRAULIC CYLINDER

1шт.

25

KHJ10350

HYDRAULIC HOSE,9.52 mm ID x 1500.00 mm

1шт.

26

KHJ15340

HYDRAULIC HOSE

1шт.

27

KUB0190

PIN

1шт.

28

102R012Y140R

BOLT

2шт.

29

KUB0169

PIN

1шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

31

KUB0177

PIN

2шт.

32

162R012VR

NUT

6шт.
