(35.360.120) - VAR - 461557 - BOOM, LINES, CLAMSHELL BUCKET, ROTATION W/ HYDRAULIC CONTROL

Запчасти Case CX750D RTC (35.360.120) - VAR - 461557 - BOOM, LINES, CLAMSHELL BUCKET, ROTATION W/ HYDRAULIC CONTROL (35) - HYDRAULIC SYSTEMS

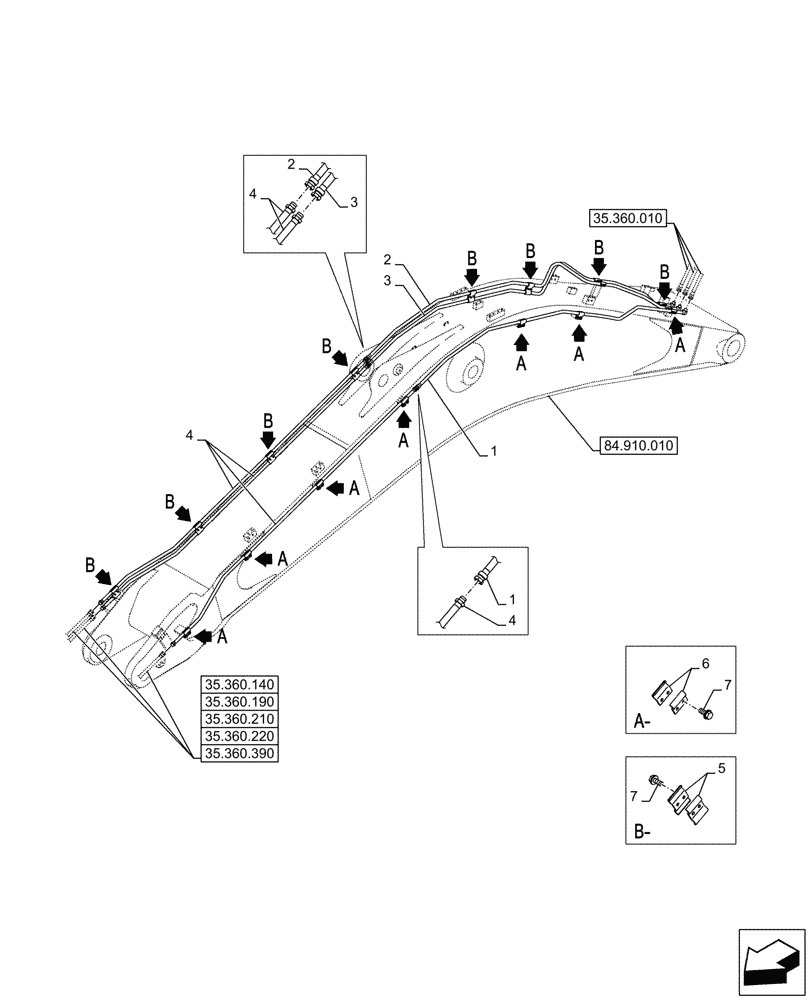

Схема запчастей Case CX750D RTC - (35.360.120) - VAR - 461557 - BOOM, LINES, CLAMSHELL BUCKET, ROTATION W/ HYDRAULIC CONTROL (35) - HYDRAULIC SYSTEMS
35.360.210
4
3
4
6
4
7
5
1
7
2
3
1
2
35.360.190
84.910.010
35.360.220
35.360.140
35.360.390
35.360.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWV13630

PIPE

1шт.

2

KWV13640

PIPE

1шт.

3

KWV13650

PIPE

1шт.

4

KWV0067

HYD TUBE

3шт.

5

KWV0084

CLAMP

16шт.

6

KWV0085

CLAMP

14шт.

7

105R012Y030R

BOLT

30шт.

Выбрано товаров: 7
